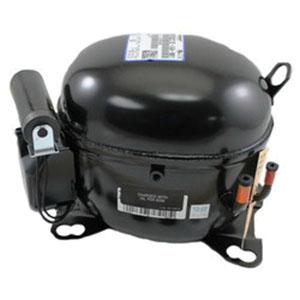

Copeland™ ASE26C4-IAA-959
Copeland™ AS ASE26C4-IAA-959 Hermetic Compressor, 115 VAC, 500 W, 1/3 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: ASE26C4-IAA-959
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: AS, 2600 Btu/hr BTU, 5/16 in Stub Suction Line, 1/4 in Stub Discharge Line, 24 - 39 lb/hr, 1.08 cu-ft/min, 115 VAC, 6.2 A, 500 W, 1/3 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 4.2 - 5 EER, 0-20 deg F Evaporator, 110-120 deg F Condensing, 40 deg F Return Gas, 110-120 deg F Liquid, 10-1/2 in L x 6.4 in W x 7.88 in H
Features
- Induction run-capacitor start motor type
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Compressor shell Series
- Model variation
- 12 oz initial oil charge, 10 oz oil recharge
- 6-1/2 in L x 4 in W x 8-1/4 in H mounting
- 7.5 A-rated load, 38 A locked rotor, 10.5 A minimum circuit
- One--cylinder
- 1.04 in bore, 0.63 in stroke
- 0.54 cu-in/rev displacement
- Bill of material-electrical components, mounting parts, 1 pack, suction valve
Specifications
|
Amperage Rating |
6.2 A |
|
BTU Rating |
2600 Btu/hr |
|
CFM Rating |
1.08 cfm |
|
Dimensions |
10.5 in L x 6.4 in W x 7.88 in H |
|
Discharge Line Size |
1/4 in Stub |
|
EER Rating |
4.2 to 5 |
|
Flow Rate |
24 to 39 lb/hr |
|
Power Rating |
500 W, 1/3 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
AS |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
5/16 in Stub |
|
Temperature Rating |
0 to 20 deg F Evaporator, 110 to 120 deg F Condensing, 40 deg F Return Gas, 110 to 120 deg F Liquid |
|
Voltage Rating |
115 VAC |
