Copeland™ 62255

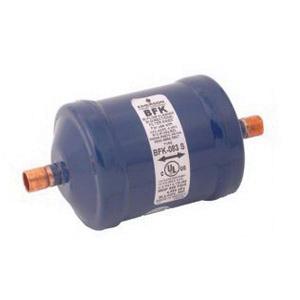

Copeland™ BFK-053S 62255 Liquid Line Filter Dryer, ODF Connection, 5 cu-in Volume
Brand: Copeland™
Item No: BFK-053S
Sign In for Availability
Description
Copeland™ Liquid Line Filter Dryer, Model: BFK-053S, ODF, 680 psig, 40 um, 5 cu-in, R-22, R-407C, R-410A, R-744, 5.2 ton Flow, Epoxy Powder-Coated, 2.64 in H x 4.49 in L
Features
- Internal check valves allow flow and filtration in either direction, eliminates need for external check valves
- High moisture and acid capacity
- Approved for POE oils with Copeland compressors
- Desiccant blend-optimized for high water capacity and acid capacity
Specifications
|
Connection Type |
ODF |
|
Dimensions |
2.64 in H x 4.49 in L |
|
Finish |
Epoxy Powder-Coated |
|
Flow Capacity |
5.2 ton |
|
Micron Rating |
40 um |
|
Model |
BFK-053S |
|
Pressure Rating |
680 psig |
|
Refrigerant Type |
R-22, R-407C, R-410A, R-744 |
|
Volume |
5 cu-in |
