Copeland™ CF12K6E-PFV-945

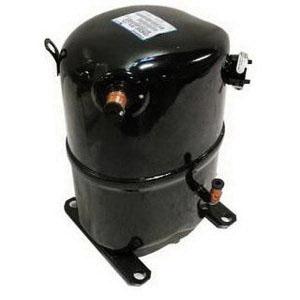

Copeland™ CF CF12K6E-PFV-945 Hermetic Compressor, 208 - 230 VAC, 3250 W, 3 hp, R-404A, HFC Refrigerant
Brand: Copeland™
Item No: CF12K6E-PFV-945
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: CF, 12000 Btu/hr BTU, 3/4 in Stub Suction Line, 1/2 in Stub Discharge Line, 188 - 290 lb/hr, 11.08 cu-ft/min, 208 - 230 VAC, 16.1 A, 3250 W, 3 hp, R-404A, HFC Refrigerant, 3500 rev/min Speed, 3.9 EER, POE Compressor Oil, -25 to-10 deg F Evaporator, 105-120 deg F Condensing, 40 deg F Return Gas, 105-120 deg F Liquid, 10.23 in L x 9.65 in W x 14.31 in H
Features
- Capacitor run-permanent split capacitor motor type
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Model variation
- 45 oz initial oil charge, 43 oz oil recharge
- 7-1/2 in L x 7-1/2 in W x 14.69 in H mounting
- 20.5 A-rated load, 105 A locked rotor, 28.7 A minimum circuit
- Two-cylinders
- 1.96 in bore, 0.91 in stroke
- 5.47 cu-in/rev displacement
- 490 cu-in internal free volume
Specifications
|
Amperage Rating |
16.1 A |
|
BTU Rating |
12000 Btu/hr |
|
CFM Rating |
11.08 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
10.23 in L x 9.65 in W x 14.31 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
3.9 |
|
Flow Rate |
188 to 290 lb/hr |
|
Power Rating |
3250 W, 3 hp |
|
Refrigerant Type |
R-404A, HFC |
|
Series |
CF |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
3/4 in Stub |
|
Temperature Rating |
-25 to -10 deg F Evaporator, 105 to 120 deg F Condensing, 40 deg F Return Gas, 105 to 120 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
