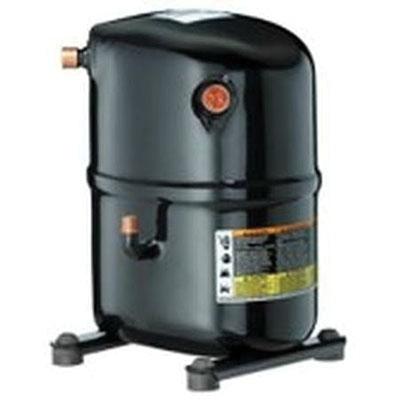

Copeland™ CR24K6E-TF5-875
Copeland™ CR CR24K6E-TF5-875 Hermetic Compressor, 2 ton, 200 - 230 VAC, 2210 W, 2 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: CR24K6E-TF5-875
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: CR, 24000 Btu/hr BTU, 2 ton, 3/4 in Stub Suction Line, 1/2 in Stub Discharge Line, 351 - 413 lb/hr, 5.47 cu-ft/min, 200 - 230 VAC, 6.8 A, 2210 W, 2 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 10.9 EER, POE Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 10.23 in L x 9.65 in W x 13.44 in H
Features
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Model variation
- 45 oz initial oil charge, 43 oz oil recharge
- 7.5 in L x 7.5 in W x 13.81 in H mounting
- 7.7 A-rated load, 55 A locked rotor, 10.8 A minimum circuit
- 2.7 cu-in/Rev displacement
- Bill of material-42 in molded plug wiring harness, mounting parts, fitting kit, crank case heater and installation instructions
Specifications
|
Amperage Rating |
6.8 A |
|
BTU Rating |
24000 Btu/hr |
|
CFM Rating |
5.47 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
10.23 in L x 9.65 in W x 13.44 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
10.9 |
|
Flow Rate |
351 to 413 lb/hr |
|
Power Rating |
2210 W, 2 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
CR |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
3/4 in Stub |
|
Temperature Rating |
45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas |
|
Tonnage |
2 ton |
|
Voltage Rating |
200 to 230 VAC |
