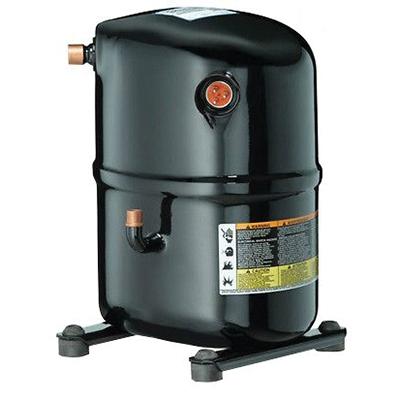

Copeland™ CRPQ-045E-TFD-970

Description

Copeland™ Hermetic Compressor, Series: CR, 57000 Btu/hr BTU, 4.5 ton, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 835 - 930 lb/hr, 11.78 cu-ft/min, 460 VAC, 8 A, 5650 W, 4-1/2 hp, R-22, R-407C, HCFC Refrigerant, 3500 rev/min Speed, 79 - 84 dBA, 16.1 EER, POE Compressor Oil, 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85-115 deg F Liquid, 10.38 in L x 9.38 in W x 15.88 in H

Features

• Internal inherent protection-one-protector (line break) Use with contactor
• Compressor family Series
• Displacement
• Model variation
• 70 oz initial oil charge, 66 oz oil recharge
• 7-1/2 in L x 7-1/2 in W x 16-1/4 in H mounting
• 10.4 A-rated load, 55 A locked rotor, 14.6 A minimum circuit
• Two-cylinders
• 1.96 in bore, 0.96 in stroke
• 5.82 cu-in/rev displacement
• Bill of material-crankcase heater, mounting parts, screw terminals (CRM-P), sweat connections, terminal cover, terminal flag kit (CRA-L), 4-13/16 x 8 in footprint
