Copeland™ CS12K6E-TF5-945

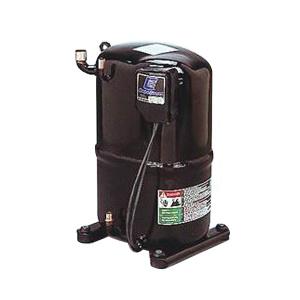

Copeland™ CS CS12K6E-TF5-945 Hermetic Compressor, 200 - 230 VAC, 1870 W, 2 hp
Brand: Copeland™
Item No: CS12K6E-TF5-945
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: CS, 12000 Btu/hr BTU, 5/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 89 - 281 lb/hr, 5.14 cu-ft/min, 200 - 230 VAC, 5.8 A, 1870 W, 2 hp, R-404A, R-22, R-134A, R-507, HFC Refrigerant, 3500 rev/min Speed, 3.6 - 6.3 EER, POE Compressor Oil, -10 to 20 deg F Evaporator, 120 deg F Condensing, Liquid, 40 deg F Return Gas, 10.23 in L x 9.65 in W x 13.31 in H
Features
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Model variation
- 45 oz initial oil charge, 43 oz oil recharge
- 7-1/2 in L x 7-1/2 in W x 13.69 in H mounting
- 7.5 A-rated load, 51 A locked rotor, 10.5 A minimum circuit, 9.6 A maximum operating
- Two-cylinders
- 1.52 in bore, 0.7 in stroke
- 2.54 cu-in/rev displacement, 308.42 cu-ft/hr displacement
Specifications
|
Amperage Rating |
5.8 A |
|
BTU Rating |
12000 Btu/hr |
|
CFM Rating |
5.14 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
10.23 in L x 9.65 in W x 13.31 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
3.6 to 6.3 |
|
Flow Rate |
89 to 281 lb/hr |
|
Power Rating |
1870 W, 2 hp |
|
Refrigerant Type |
R-404A, R-22, R-134A, R-507, HFC |
|
Series |
CS |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
5/8 in Stub |
|
Temperature Rating |
-10 to 20 deg F Evaporator, 120 deg F Condensing, Liquid, 40 deg F Return Gas |
|
Voltage Rating |
200 to 230 VAC |
