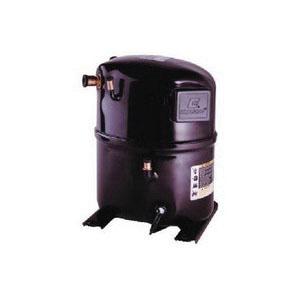

Copeland™ CS20K6E-PFV-945
Copeland™ CS CS20K6E-PFV-945 Hermetic Compressor, 208 - 230 VAC, 3120 W, 3-1/4 hp, R-404A, HFC Refrigerant
Brand: Copeland™
Item No: CS20K6E-PFV-945
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: CS, 20000 Btu/hr BTU, 5/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 159 - 478 lb/hr, 8.9 cu-ft/min, 208 - 230 VAC, 14.9 A, 3120 W, 3-1/4 hp, R-404A, HFC Refrigerant, 3500 rev/min Speed, 3.8 - 6.4 EER, POE Compressor Oil, -10 to 20 deg F Evaporator, 120 deg F Condensing, 40 deg F Return Gas, 120 deg F Liquid, 10.23 in L x 9.65 in W x 14.06 in H
Features
- Capacitor run-permanent split capacitor motor type
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Model variation
- 45 oz initial oil charge, 43 oz oil recharge
- 7-1/2 in L x 7-1/2 in W x 14.44 in H mounting
- 18.6 A-rated load, 96 A locked rotor, 26 A minimum circuit
- Two-cylinders
- 1.96 in bore, 0.73 in stroke
- 4.4 cu-in/rev displacement
Specifications
|
Amperage Rating |
14.9 A |
|
BTU Rating |
20000 Btu/hr |
|
CFM Rating |
8.9 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
10.23 in L x 9.65 in W x 14.06 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
3.8 to 6.4 |
|
Flow Rate |
159 to 478 lb/hr |
|
Power Rating |
3120 W, 3-1/4 hp |
|
Refrigerant Type |
R-404A, HFC |
|
Series |
CS |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
5/8 in Stub |
|
Temperature Rating |
-10 to 20 deg F Evaporator, 120 deg F Condensing, 40 deg F Return Gas, 120 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
