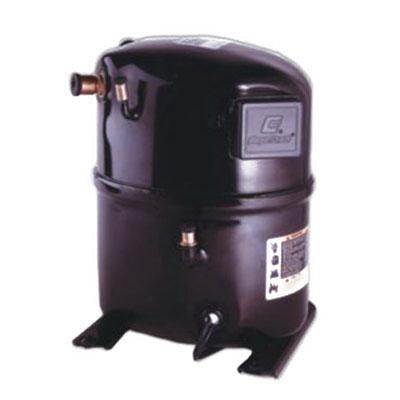

Copeland™ CS33K6E-TF5-956
Copeland™ CS CS33K6E-TF5-956 Hermetic Compressor, 200 - 230 VAC, 4960 W, 5 hp, R-404A, HFC Refrigerant
Brand: Copeland™
Item No: CS33K6E-TF5-956
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: CS, 33000 Btu/hr BTU, 22-7/32 mm Stub Suction Line, 12-11/16 mm Stub Discharge Line, 35 - 92 lb/hr, 12.6 cu-ft/min, 200 - 230 VAC, 14.8 A, 4960 W, 5 hp, R-404A, HFC Refrigerant, 3500 rev/min Speed, 1.17 - 1.82 EER, POE Compressor Oil, -6.7 to 23.3 deg C Evaporator, 48.9 deg C Condensing, 4.4 deg C Return Gas, 48.9 deg C Liquid, 259.79 mm L x 245.24 mm W x 376.22 mm H
Features
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Model variation
- 1331 L initial oil charge, 1272 L oil recharge
- 190.5 mm L x 190.5 mm W x 385-3/4 mm H mounting
- 18.7 A-rated load, 102 A locked rotor, 26.2 A minimum circuit
- Two-cylinders
- 49.78 mm bore, 26.19 mm stroke
- 101.96 cu-cm/Rev displacement
Specifications
|
Amperage Rating |
14.8 A |
|
BTU Rating |
33000 Btu/hr |
|
CFM Rating |
12.6 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
259.79 mm L x 245.24 mm W x 376.22 mm H |
|
Discharge Line Size |
12-11/16 mm Stub |
|
EER Rating |
1.17 to 1.82 |
|
Flow Rate |
35 to 92 lb/hr |
|
Power Rating |
4960 W, 5 hp |
|
Refrigerant Type |
R-404A, HFC |
|
Series |
CS |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
22-7/32 mm Stub |
|
Temperature Rating |
-6.7 to 23.3 deg C Evaporator, 48.9 deg C Condensing, 4.4 deg C Return Gas, 48.9 deg C Liquid |
|
Voltage Rating |
200 to 230 VAC |
