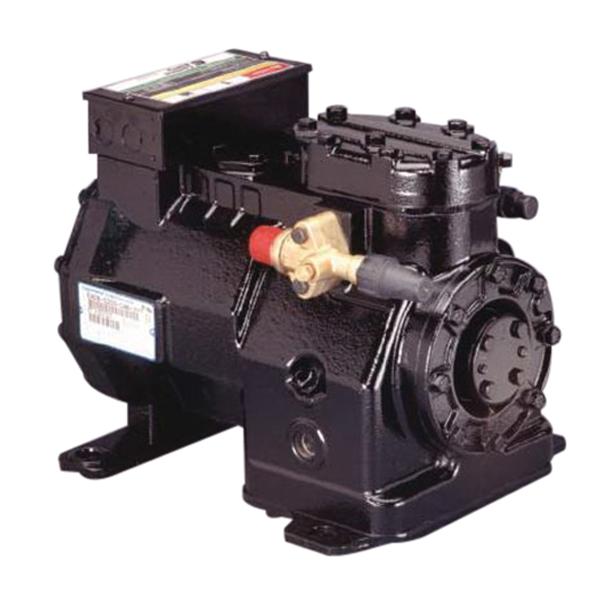

Copeland™ EAJB-015A-CAB-800
Copeland™ EA EAJB-015A-CAB-800 Semi-Hermetic Compressor, 230 VAC, 1230 W, 1-1/2 hp, R-12, CFC Refrigerant
Brand: Copeland™
Item No: EAJB-015A-CAB-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: EA, 4980 Btu/hr BTU, 7/8 in Sweat Suction Line, 1/2 in Flare Discharge Line, 59 - 91 lb/hr, 8.21 cu-ft/min, 230 VAC, 5.5 A, 1230 W, 1-1/2 hp, R-12, CFC Refrigerant, 3500 rev/min Speed, 4 EER, Alkylbenzene Compressor Oil, -25 to-40 deg F Evaporator, 105 deg F Condensing, Liquid, 65 deg F Return Gas, 16.69 in L x 12 in W x 12.78 in H
Features
- Capacitor run-capacitor start motor type
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement
- Model variation
- 60 oz initial oil charge, 55 oz oil recharge
- 10.06 in L x 10.5 in W x 13.81 in H mounting
- 6.6 A-rated load, 41 A locked rotor, 9.3 A minimum circuit
- Two-cylinders
- 1.94 in bore, 1.38 in stroke
- 8.11 cu-in/rev displacement
- 800 indicates a standard replacement compressor and component parts and model number-240 V control
Specifications
|
Amperage Rating |
5.5 A |
|
BTU Rating |
4980 Btu/hr |
|
CFM Rating |
8.21 cfm |
|
Compressor Oil |
Alkylbenzene |
|
Dimensions |
16.69 in L x 12 in W x 12.78 in H |
|
Discharge Line Size |
1/2 in Flare |
|
EER Rating |
4 |
|
Flow Rate |
59 to 91 lb/hr |
|
Power Rating |
1230 W, 1-1/2 hp |
|
Refrigerant Type |
R-12, CFC |
|
Series |
EA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
7/8 in Sweat |
|
Temperature Rating |
-25 to -40 deg F Evaporator, 105 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
230 VAC |
