Copeland™ 48214

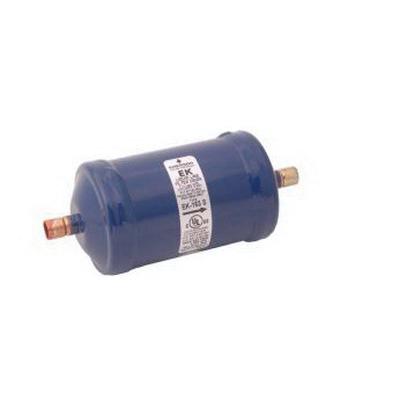

Copeland™ EK Series EK 305 48214 Liquid Line Filter Dryer, Female Connection, 30 cu-in Volume
Brand: Copeland™
Item No: EK-305
Sign In for Availability
Description
Copeland™ Liquid Line Filter Dryer, Series: EK Series, Model: EK 305, Female, 680 psig, 20 um, 30 cu-in, CFC, HCFC, HFC, R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-448A, 14.8 ton Flow, Steel, Epoxy Powder-Coated, 3.01 in H x 10.34 in L
Features
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid capacity
- Solid copper connections
- Approved for POE oils with Copeland compressors
- Shock resistant steel shell construction
- Desiccant blend-optimized for high water capacity and acid capacity
Specifications
|
Connection Type |
Female |
|
Dimensions |
3.01 in H x 10.34 in L |
|
Finish |
Epoxy Powder-Coated |
|
Flow Capacity |
14.8 ton |
|
Material |
Steel |
|
Micron Rating |
20 um |
|
Model |
EK 305 |
|
Pressure Rating |
680 psig |
|
Refrigerant Type |
CFC, HCFC, HFC, R-12, R-134A, R-22, R-404A, R-407C, R-410A, R-448A |
|
Series |
EK Series |
|
Volume |
30 cu-in |
