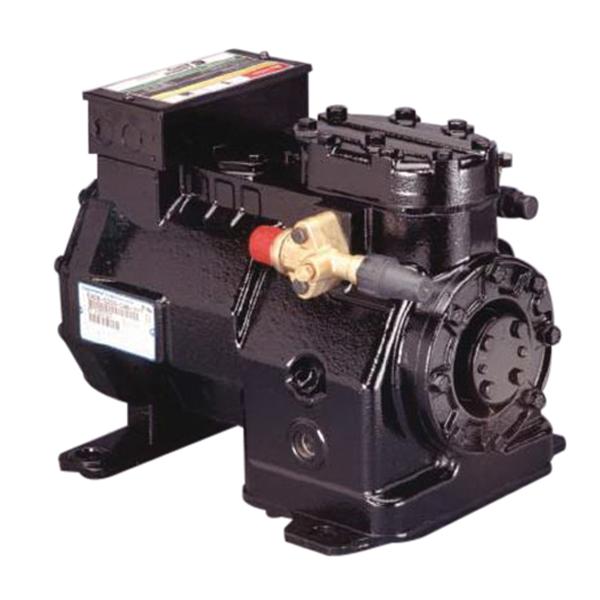

Copeland™ ERCA-020E-TAD-800
Copeland™ ER ERCA-020E-TAD-800 Semi-Hermetic Compressor, 460 VAC, 2 hp, R-22, R-404A, HCFC Refrigerant
Brand: Copeland™
Item No: ERCA-020E-TAD-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: ER, 12100 Btu/hr BTU, 7/8 in Sweat Suction Line, 5/8 in Flare Discharge Line, 194 - 314 lb/hr, 5.633 cu-ft/min, 460 VAC, 3.5 A, 2 hp, R-22, R-404A, HCFC Refrigerant, POE Compressor Oil, 65 deg F Return Gas
Features
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement
- Model variation
- Rugged, compact construction for heavy-duty usage
- Easily accessible for field maintenance
- 10.06 in L x 10.5 in W x 13.94 in H mounting
- 3.4 A-rated load, 23 A locked rotor
- Two-cylinders
- 1-3/4 in bore, 1.16 in stroke
- 5.56 cu-in/rev displacement
- 800 indicates a standard replacement compressor and component parts and model number-240 V control
Specifications
|
Amperage Rating |
3.5 A |
|
BTU Rating |
12100 Btu/hr |
|
CFM Rating |
5.633 cfm |
|
Compressor Oil |
POE |
|
Discharge Line Size |
5/8 in Flare |
|
Flow Rate |
194 to 314 lb/hr |
|
Power Rating |
2 hp |
|
Refrigerant Type |
R-22, R-404A, HCFC |
|
Series |
ER |
|
Suction Line Size |
7/8 in Sweat |
|
Temperature Rating |
65 deg F Return Gas |
|
Voltage Rating |
460 VAC |
