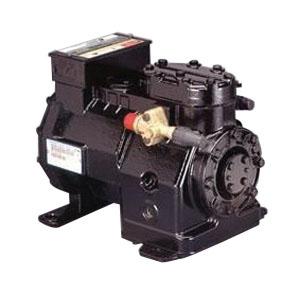

Copeland™ ERFA-031E-TAC-800
Copeland™ ER ERFA-031E-TAC-800 Semi-Hermetic Compressor, 208 - 230 VAC, 3840 W, 3 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: ERFA-031E-TAC-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: ER, 35200 Btu/hr BTU, 1-1/8 in Sweat Suction Line, 5/8 in Flare Discharge Line, 320 - 555 lb/hr, 7.69 cu-ft/min, 208 - 230 VAC, 11.6 A, 3840 W, 3 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 7.2 - 9.2 EER, POE Compressor Oil, 20-45 deg F Evaporator, 120-130 deg F Condensing, 65 deg F Return Gas, 120-130 deg F Liquid, 17.69 in L x 12 in W x 12.91 in H
Features
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement
- Model variation
- 60 oz initial oil charge, 55 oz oil recharge
- 10.06 in L x 10.5 in W x 13.94 in H mounting
- 12.4 A-rated load, 82 A locked rotor, 17.4 A minimum circuit
- Two-cylinders
- 1.88 in bore, 1.38 in stroke
- 7.59 cu-in/rev displacement
- 800 indicates a standard replacement compressor and component parts and model number-240 V control
Specifications
|
Amperage Rating |
11.6 A |
|
BTU Rating |
35200 Btu/hr |
|
CFM Rating |
7.69 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
17.69 in L x 12 in W x 12.91 in H |
|
Discharge Line Size |
5/8 in Flare |
|
EER Rating |
7.2 to 9.2 |
|
Flow Rate |
320 to 555 lb/hr |
|
Power Rating |
3840 W, 3 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
ER |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-1/8 in Sweat |
|
Temperature Rating |
20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, 65 deg F Return Gas, 120 to 130 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
