Copeland™ FFAM-A12Z-TFC-072

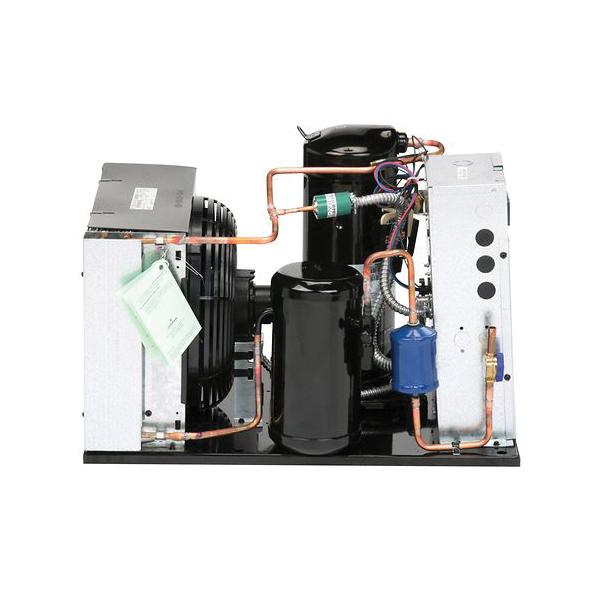

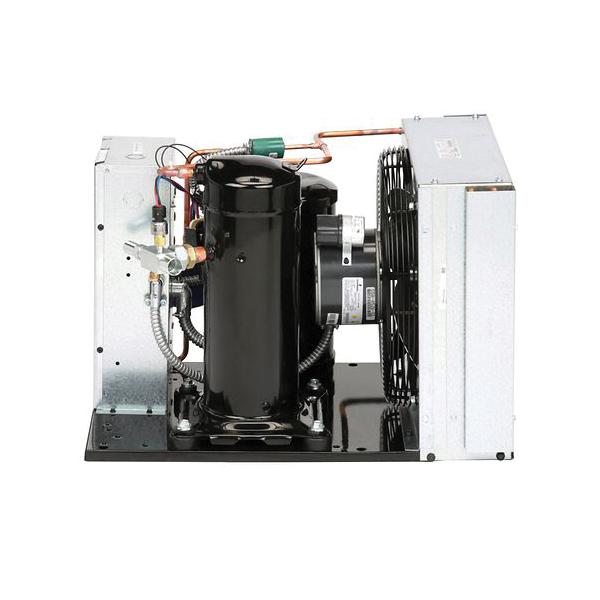

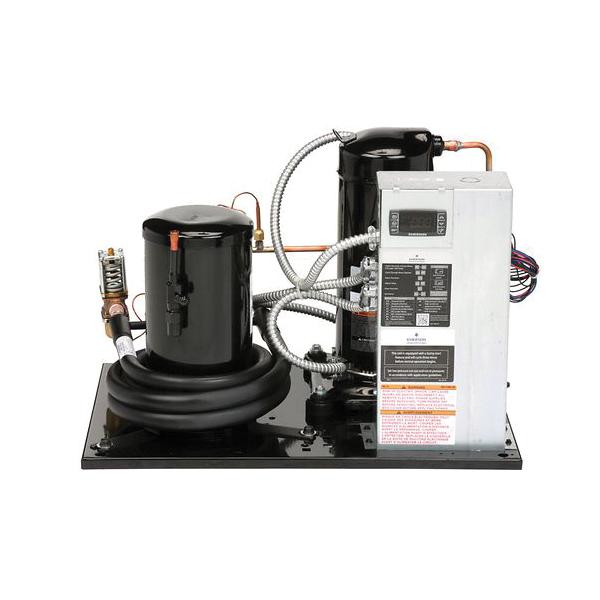

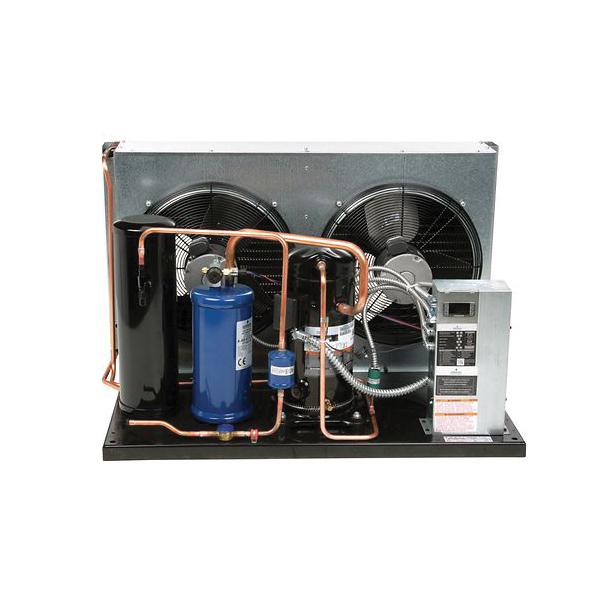

Copeland™ F-Line Series FFAM-A12Z-TFC-072 Medium Temperature Air Cooled Condensing Unit, 208/230 V, 8 A
Brand: Copeland™
Item No: FFAM-A12Z-TFC-072
Sign In for Availability
Description
Copeland™ Medium Temperature Air Cooled Condensing Unit, Series F-Line Series, 208/230 V, 8 A, 2230 to 10300 Btu/hr BTU, 1-1/4 hp, 3 ph, 60 Hz, R-134A, R-22, R-404A, R-407A, R-407C, R-448A, R-449A, R-507, 3/8 x 7/8 in Connection, 8.172 EER, 24.12 in L x 18.33 in W x 16.45 in H, 15 A Fuse Rating
Features
- Flat metal and Copevap™ base
Specifications
|
Additional Information |
15 A Fuse Rating |
|
Amperage Rating |
8 A |
|
BTU Rating |
2230 to 10300 Btu/hr |
|
Connection Size |
3/8 x 7/8 in |
|
Dimensions |
24.12 in L x 18.33 in W x 16.45 in H |
|
EER Rating |
8.172 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1-1/4 hp |
|
Phase |
3 ph |
|
Refrigerant Type |
R-134A, R-22, R-404A, R-407A, R-407C, R-448A, R-449A, R-507 |
|
Series |
F-Line Series |
|
Voltage Rating |
208/230 V |
