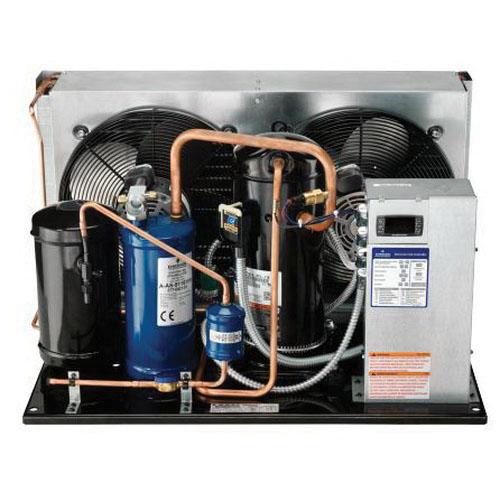

Copeland™ FFAP-030Z-TFC-071

Description

Copeland™ Air Cooled Refrigeration Condensing Unit, Series: FFAP Series, Model: FFAP-030Z-TFC, 11.2 lb Nominal Capacity, 29400 Btu/hr, 208 to 230 V, 19.9 A, 3 hp HP Rating, 60 Hz, 3 ph, 2170 cfm CFM Rating, 7.8 EER, R-134A, R-22, R-404A, R-407C, 3/8 in Liquid Line, 7/8 in Suction Line, Sweat, 30 A Fuse, 90 deg F, 40 deg F, 5 deg F, Steel, 25.2 in L x 34.1 in W x 19 in H

Features

• Multiple refrigerant
• General three lead single voltage, six lead part winding (575 V), nine lead dual voltage compressor motor
• Internal inherent protection, one protector use with contactor
• Bill of material include suction valve, suction accumulator, receiver, BX conduit, fan guard, discharge line thermostats, high/low-pressure control, anti-short cycle time delay, filter drier, moisture indicator, compressor crankcase heater, fan cycle control, fixed HP, adjustable LP
• Reliability, high-energy efficiency
• Low sound and vibration level
• Advanced diagnostics and protection features faster troubleshooting
• Factory installed EK filter drier and HMI moisture indicator fewer the leaks, reduced callbacks, lower installation costs, increased equipment reliability
• Modular components
• Replacement serviceability
• Multi-refrigerant approval for high/medium model
• Application flexibility, inventory consolidation
• Copeland™ scroll compressors on all model
• 25 oz oil recharge
