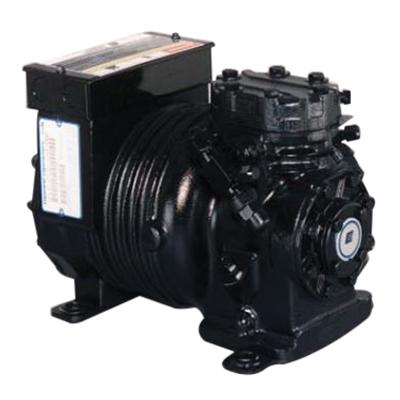

Copeland™ HAGB-005E-CAV-800
Copeland™ HA HAGB-005E-CAV-800 Semi-Hermetic Compressor, 208 - 230 VAC, 1/2 hp, R-22, R-404A, R-502 Refrigerant
Brand: Copeland™
Item No: HAGB-005E-CAV-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: HA, 02-01-2021 in Suction Line, 08-03-2021 in Discharge Line, 1.266 cu-ft/min, 208 - 230 VAC, 1/2 hp, R-22, R-404A, R-502 Refrigerant, POE Compressor Oil
Features
- Capacitor run-capacitor start motor type
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement
- Model variation
- 4 A-rated load, 22 A locked rotor
Specifications
|
CFM Rating |
1.266 cfm |
|
Compressor Oil |
POE |
|
Discharge Line Size |
8-3/8 in |
|
Power Rating |
1/2 hp |
|
Refrigerant Type |
R-22, R-404A, R-502 |
|
Series |
HA |
|
Suction Line Size |
2-1/8 in |
|
Voltage Rating |
208 to 230 VAC |
