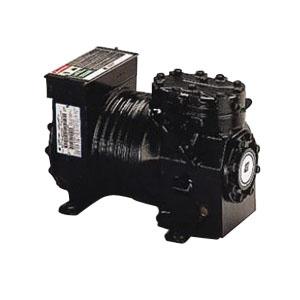

Copeland™ KALA-015A-TAD-800
Copeland™ KA KALA-015A-TAD-800 Semi-Hermetic Compressor, 460 VAC, 1690 W, 1-1/2 hp, R-12, R-502, CFC Refrigerant
Brand: Copeland™
Item No: KALA-015A-TAD-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: KA, 15200 Btu/hr BTU, 7/8 in Sweat Suction Line, 1/2 in Flare Discharge Line, 188 - 327 lb/hr, 5.25 cu-ft/min, 460 VAC, 2.5 A, 1690 W, 1-1/2 hp, R-12, R-502, CFC Refrigerant, 3500 rev/min Speed, 9 - 6.9 EER, Alkylbenzene Compressor Oil, 20-45 deg F Evaporator, 120-130 deg F Condensing, Liquid, 65 deg F Return Gas, 14.38 in L x 9-1/2 in W x 10.44 in H
Features
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement
- Model variation
- 22 oz initial oil charge, 20 oz oil recharge
- 8.19 in L x 6.38 in W x 11.19 in H mounting
- 2.6 A-rated load, 18.2 A locked rotor, 3.6 A minimum circuit
- 5.18 cu-in/rev displacement
Specifications
|
Amperage Rating |
2.5 A |
|
BTU Rating |
15200 Btu/hr |
|
CFM Rating |
5.25 cfm |
|
Compressor Oil |
Alkylbenzene |
|
Dimensions |
14.38 in L x 9.5 in W x 10.44 in H |
|
Discharge Line Size |
1/2 in Flare |
|
EER Rating |
9 to 6.9 |
|
Flow Rate |
188 to 327 lb/hr |
|
Power Rating |
1690 W, 1-1/2 hp |
|
Refrigerant Type |
R-12, R-502, CFC |
|
Series |
KA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
7/8 in Sweat |
|
Temperature Rating |
20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
460 VAC |
