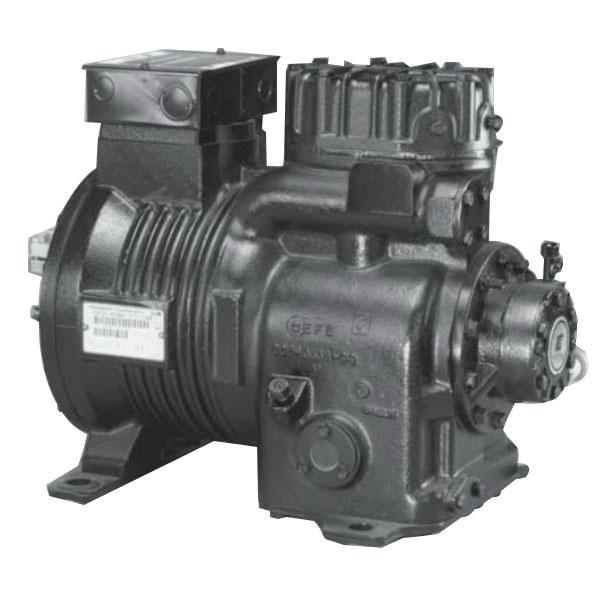

Copeland™ MRH4-076A-TFC-800
Copeland™ MR MRH4-076A-TFC-800 Semi-Hermetic Compressor, 208 - 230 VAC, 7600 W, 7-1/2 hp, R-502, CFC Refrigerant
Brand: Copeland™
Item No: MRH4-076A-TFC-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: MR, 53000 Btu/hr BTU, 1-3/8 in Sweat Suction Line, 1-1/8 in Sweat Discharge Line, 740 - 1190 lb/hr, 18.95 cu-ft/min, 208 - 230 VAC, 24.5 A, 7600 W, 7-1/2 hp, R-502, CFC Refrigerant, 3500 rev/min Speed, 6.2 - 7 EER, Alkylbenzene Compressor Oil, 0-20 deg F Evaporator, 110-120 deg F Condensing, 65 deg F Return Gas, 110-120 deg F Liquid, 22.44 in L x 13 in W x 16.94 in H
Features
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement
- Model variation
- 80 oz initial oil charge, 70 oz oil recharge
- 11.63 in L x 11 in W x 18 in H mounting
- 30.3 A-rated load, 164 A locked rotor, 42.4 A minimum circuit
- Two-cylinders
- 2.56 in bore, 1.81 in stroke
- 18.71 cu-in/rev displacement
Specifications
|
Amperage Rating |
24.5 A |
|
BTU Rating |
53000 Btu/hr |
|
CFM Rating |
18.95 cfm |
|
Compressor Oil |
Alkylbenzene |
|
Dimensions |
22.44 in L x 13 in W x 16.94 in H |
|
Discharge Line Size |
1-1/8 in Sweat |
|
EER Rating |
6.2 to 7 |
|
Flow Rate |
740 to 1190 lb/hr |
|
Power Rating |
7600 W, 7-1/2 hp |
|
Refrigerant Type |
R-502, CFC |
|
Series |
MR |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-3/8 in Sweat |
|
Temperature Rating |
0 to 20 deg F Evaporator, 110 to 120 deg F Condensing, 65 deg F Return Gas, 110 to 120 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
