Copeland™ NRA2-050A-TFC-800

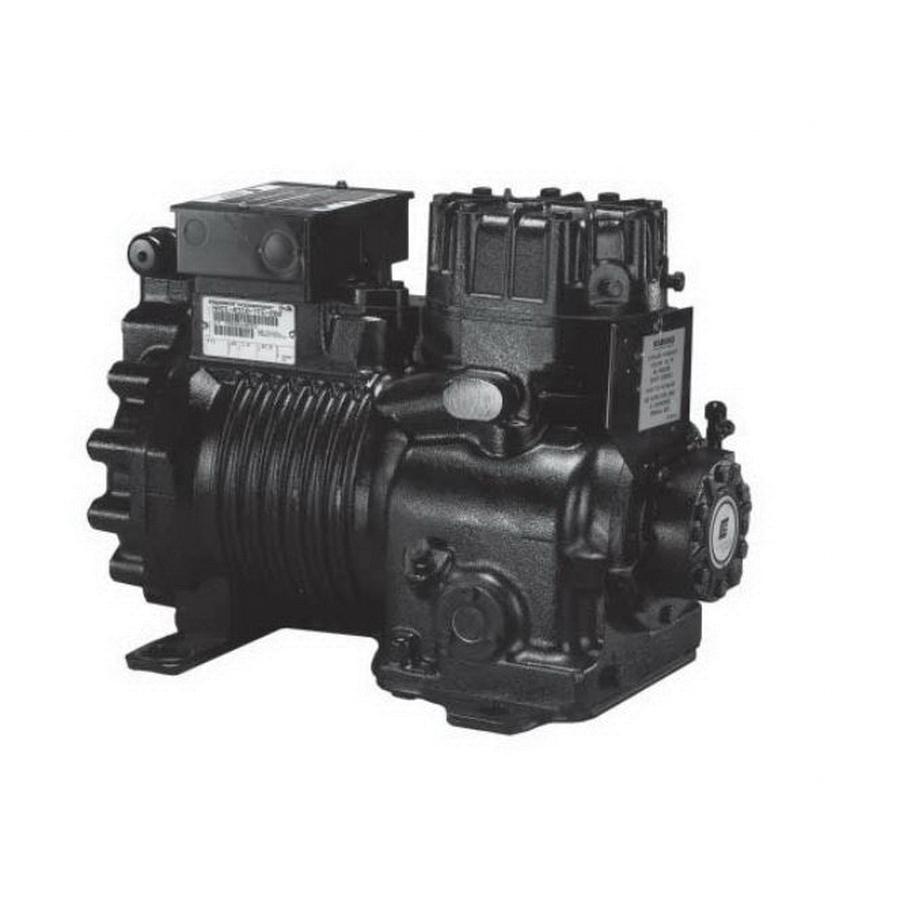

Copeland™ NR NRA2-050A-TFC-800 Semi-Hermetic Compressor, 208 - 230 VAC, 6900 W, 5 hp, R-22, HCFC Refrigerant
Brand: Copeland™
Item No: NRA2-050A-TFC-800
Sign In for Availability
Description
Copeland™ Semi-Hermetic Compressor, Series: NR, 57500 Btu/hr BTU, 1-1/8 in Sweat Suction Line, 5/8 in Flare Discharge Line, 515 - 910 lb/hr, 13.59 cu-ft/min, 208 - 230 VAC, 19.4 A, 6900 W, 5 hp, R-22, HCFC Refrigerant, 3500 rev/min Speed, 8.3 EER, Alkylbenzene Compressor Oil, 20-45 deg F Evaporator, 120-130 deg F Condensing, Liquid, 65 deg F Return Gas, 20.19 in L x 13 in W x 15.34 in H
Features
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Displacement
- Model variation
- 70 oz initial oil charge, 66 oz oil recharge
- 11.63 in L x 11 in W x 16.38 in H mounting
- 19.2 A-rated load, 141 A locked rotor, 26.9 A minimum circuit
- Two-cylinders
- 2.44 in bore, 1.44 in stroke
- 13.43 cu-in/rev displacement
Specifications
|
Amperage Rating |
19.4 A |
|
BTU Rating |
57500 Btu/hr |
|
CFM Rating |
13.59 cfm |
|
Compressor Oil |
Alkylbenzene |
|
Dimensions |
20.19 in L x 13 in W x 15.34 in H |
|
Discharge Line Size |
5/8 in Flare |
|
EER Rating |
8.3 |
|
Flow Rate |
515 to 910 lb/hr |
|
Power Rating |
6900 W, 5 hp |
|
Refrigerant Type |
R-22, HCFC |
|
Series |
NR |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-1/8 in Sweat |
|
Temperature Rating |
20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
208 to 230 VAC |
