Copeland™ FTAH-A201-CFV-020

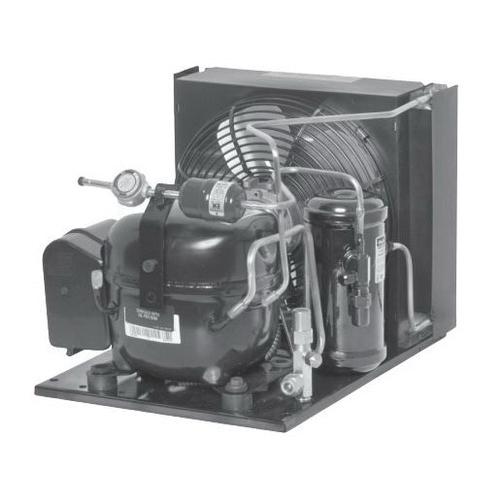

Copeland™ FTAH Series FTAH-A201-CFV-020 Air Cooled Condensing Unit, 208 to 230 V, 26900 Btu/hr
Brand: Copeland™
Item No: OEM FTAH-A201-CFV-020
Sign In for Availability
Description
Copeland™ Air Cooled Condensing Unit, Series: FTAH Series, Model: FTAH-A201-CFV, 16.7 lb Nominal Capacity, 26900 Btu/hr, 208 to 230 V, 29.1 A, 2 hp HP Rating, 60 Hz, 1 ph, 2470 cfm CFM Rating, 9.8 EER, HFC, R-134A, 3/8 in Liquid Line, 7/8 in Suction Line, Sweat, 40 A Fuse, 5 deg F, 65 deg F, 90 deg F, Steel, 25.3 in L x 34.1 in W x 18.9 in H
Features
- Reliability
- High-energy efficiency
- Low sound and vibration level
- Replacement serviceability
- Application flexibility
- Modular components
- Compact design
- Condensing unit family
- Air cooled steel base
- Capacitor run, capacitor start motor
- Internal inherent protection, one protector (line break)
- Bill of material include suction valve, receiver with valve, box conduit, fan guard
Specifications
|
Amperage Rating |
29.1 A |
|
BTU Rating |
26900 Btu/hr |
|
CFM Rating |
2470 cfm |
|
Connection Type |
Sweat |
|
Dimensions |
25.3 in L x 34.1 in W x 18.9 in H |
|
EER Rating |
9.8 |
|
Frequency Rating |
60 Hz |
|
Fuse Rating |
40 A |
|
HP Rating |
2 hp |
|
Liquid Line Size |
3/8 in |
|
Material |
Steel |
|
Model |
FTAH-A201-CFV |
|
Nominal Capacity |
16.7 lb |
|
Phase |
1 ph |
|
Refrigerant Type |
HFC, R-134A |
|
Series |
FTAH Series |
|
Suction Line Size |
7/8 in |
|
Temperature Rating |
5 deg F, 65 deg F, 90 deg F |
|
Voltage Rating |
208 to 230 V |
