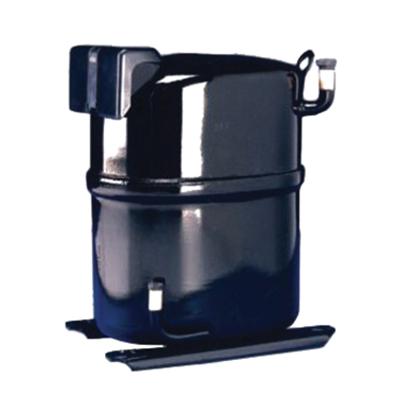

Copeland™ RFT22C1E-IAA-901
Copeland™ RF RFT22C1E-IAA-901 Hermetic Compressor, 115 VAC, 635 W, 1/2 hp, R-404A, R-507, HFC Refrigerant
Brand: Copeland™
Item No: RFT22C1E-IAA-901
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: RF, 2200 Btu/hr BTU, 3/8 in Stub Suction Line, 1/4 in Stub Discharge Line, 30 - 45 lb/hr, 1.795 cu-ft/min, 115 VAC, 8.05 A, 635 W, 1/2 hp, R-404A, R-507, HFC Refrigerant, 3500 rev/min Speed, 62 - 64 dBA, 3 - 3.2 EER, POE Compressor Oil, -10 to-25 deg F Evaporator, 105-120 deg F Condensing, Liquid, 40 deg F Return Gas, 10.3 in L x 7.1 in W x 8.7 in H
Features
- Compressors with polyolester oil
- Induction run-capacitor start motor type
- External inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Compressor shell Series
- Model variation
- 15 oz initial oil charge, 13 oz oil recharge
- 8 in L x 4.8 in W x 9.3 in H mounting
- 7.9 A-rated load, 54.5 A locked rotor, 11 A minimum circuit
- One--cylinder
- 1.34 in bore, 0.62 in stroke
- 0.89 cu-in/rev displacement, 107.75 cu-ft/hr displacement
Specifications
|
Amperage Rating |
8.05 A |
|
BTU Rating |
2200 Btu/hr |
|
CFM Rating |
1.795 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
10.3 in L x 7.1 in W x 8.7 in H |
|
Discharge Line Size |
1/4 in Stub |
|
EER Rating |
3 to 3.2 |
|
Flow Rate |
30 to 45 lb/hr |
|
Power Rating |
635 W, 1/2 hp |
|
Refrigerant Type |
R-404A, R-507, HFC |
|
Series |
RF |
|
Sound Level |
62 to 64 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
3/8 in Stub |
|
Temperature Rating |
-10 to -25 deg F Evaporator, 105 to 120 deg F Condensing, Liquid, 40 deg F Return Gas |
|
Voltage Rating |
115 VAC |
