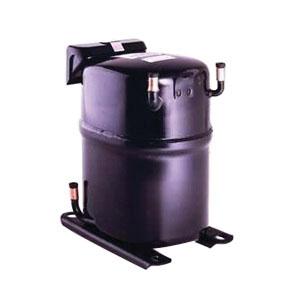

Copeland™ RFT42C1E-PFV-901
Copeland™ RF RFT42C1E-PFV-901 Hermetic Compressor, 208 - 230 VAC, 1180 W, 3/4 hp, R-404A, HFC Refrigerant
Brand: Copeland™
Item No: RFT42C1E-PFV-901
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: RF, 4200 Btu/hr BTU, 3/8 in Stub Suction Line, 1/4 in Stub Discharge Line, 62 - 93 lb/hr, 3.44 cu-ft/min, 208 - 230 VAC, 5.4 A, 1180 W, 3/4 hp, R-404A, HFC Refrigerant, 3500 rev/min Speed, 64 - 67 dBA, 3.35 - 3.5 EER, POE Compressor Oil, -25 to-10 deg F Evaporator, 105-120 deg F Condensing, 40 deg F Return Gas, 105-120 deg F Liquid, 10.3 in L x 7.1 in W x 9.8 in H
Features
- Capacitor run-permanent split capacitor motor type
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Compressor shell Series
- Model variation
- 22 oz initial oil charge, 20 oz oil recharge
- 8 in L x 4.8 in W x 10.4 in H mounting
- 8 A-rated load, 45 A locked rotor, 11.2 A minimum circuit
- One--cylinder
- 1-1/2 in bore, 0.96 in stroke
- 1.7 cu-in/rev displacement
Specifications
|
Amperage Rating |
5.4 A |
|
BTU Rating |
4200 Btu/hr |
|
CFM Rating |
3.44 cfm |
|
Compressor Oil |
POE |
|
Dimensions |
10.3 in L x 7.1 in W x 9.8 in H |
|
Discharge Line Size |
1/4 in Stub |
|
EER Rating |
3.35 to 3.5 |
|
Flow Rate |
62 to 93 lb/hr |
|
Power Rating |
1180 W, 3/4 hp |
|
Refrigerant Type |
R-404A, HFC |
|
Series |
RF |
|
Sound Level |
64 to 67 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
3/8 in Stub |
|
Temperature Rating |
-25 to -10 deg F Evaporator, 105 to 120 deg F Condensing, 40 deg F Return Gas, 105 to 120 deg F Liquid |
|
Voltage Rating |
208 to 230 VAC |
