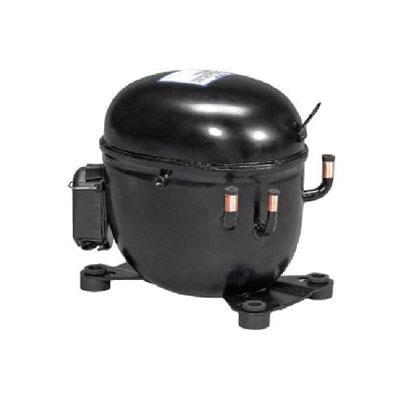

Copeland™ RST64C1-CAV-959

Description

Copeland™ Hermetic Compressor, Series: RS, 6400 Btu/hr BTU, 1 ton, 1 in Rotalock Suction Line, 1/4 in Stub Discharge Line, 101 - 181 lb/hr, 2.77 cu-ft/min, 208 - 230 VAC, 7.4 A, 1490 W, 1 hp, R-404A, R-22, HCFC Refrigerant, 3500 rev/min Speed, 5.9 - 7.7 EER, Alkylbenzene Compressor Oil, 20-45 deg F Evaporator, 120-130 deg F Condensing, 65 deg F Return Gas, 120-130 deg F Liquid, 10.3 in L x 7.1 in W x 9.2 in H

Features

• Capacitor run-capacitor start motor type
• External inherent protection-one-protector (line break) Use with contactor
• Compressor family Series
• Compressor shell Series
• Model variation
• 15 oz initial oil charge, 13 oz oil recharge
• 8 in L x 4.8 in W x 9.9 in H mounting
• 9 A-rated load, 43 A locked rotor, 12.6 A minimum circuit
• One--cylinder
• 1.46 in bore, 0.82 in stroke
• 1.37 cu-in/rev displacement
• Bill of material-electrical components included except on TFC, TFD, TFE models (-mounted on IAA and IAV models CAA and CAV models include capacitor and relay kit remote), mounting parts, suction valve/rotalock
