Copeland™ RST80C1E-PFV-959

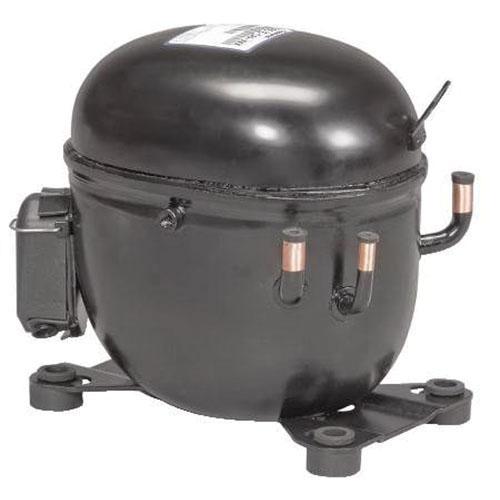

Copeland™ RS RST80C1E-PFV-959 Hermetic Compressor, 208 - 230 VAC, 1-1/2 hp, R-404A, R-22 Refrigerant
Brand: Copeland™
Item No: RST80C1E-PFV-959
Sign In for Availability
Description
Copeland™ Hermetic Compressor, Series: RS, 8000 Btu/hr BTU, 1/2 in ODF Suction Line, 3/8 in ODF Discharge Line, 208 - 230 VAC, 1-1/2 hp, R-404A, R-22 Refrigerant, POE Compressor Oil, 120 deg F
Features
- Capacitor run-permanent split capacitor motor type
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Compressor shell Series
- Model variation
- 22 oz initial oil charge, 20 oz oil recharge
- 9.3 A-rated load
- Bill of material-electrical components included except on TFC, TFD, TFE models (-mounted on IAA and IAV models CAA and CAV models include capacitor and relay kit remote), mounting parts, suction valve/rotalock
Specifications
|
BTU Rating |
8000 Btu/hr |
|
Compressor Oil |
POE |
|
Discharge Line Size |
3/8 in ODF |
|
Power Rating |
1-1/2 hp |
|
Refrigerant Type |
R-404A, R-22 |
|
Series |
RS |
|
Suction Line Size |
1/2 in ODF |
|
Temperature Rating |
120 deg F |
|
Voltage Rating |
208 - 230 VAC |
