Copeland™ 53047

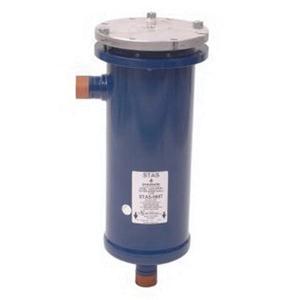

Copeland™ STAS-9617S-V 53047 Suction Line Filter Dryer, ODF Connection, 96 cu-in Surface Area
Brand: Copeland™
Item No: STAS-9617-SV
Sign In for Availability
Description
Copeland™ Suction Line Filter Dryer, Model: STAS-9617S-V, ODF, 500 psig, 40 um, CFC, HCFC, HFC, R-12, R-134A, R-450A, R-513A, 96 cu-in Surface Area, 18 ton Flow, Steel, Epoxy Powder-Coated, 6.19 in Dia x 15.56 in L
Features
- The STAS-CO is specifically designed for CO2 (R-744) System
- Slotted cover/unique internal hardware for hassle-free installation
- Full flow fittings for low pressure drop
- Corrosion-resistant epoxy powder paint finish
- Sturdy steel shells for long life
- Solid copper connections
- 100 mesh outlet screen
Specifications
|
Connection Type |
ODF |
|
Dimensions |
6.19 in Dia x 15.56 in L |
|
Finish |
Epoxy Powder-Coated |
|
Flow Capacity |
18 ton |
|
Material |
Steel |
|
Micron Rating |
40 um |
|
Model |
STAS-9617S-V |
|
Pressure Rating |
500 psig |
|
Refrigerant Type |
CFC, HCFC, HFC, R-12, R-134A, R-450A, R-513A |
|
Surface Area |
96 cu-in |
