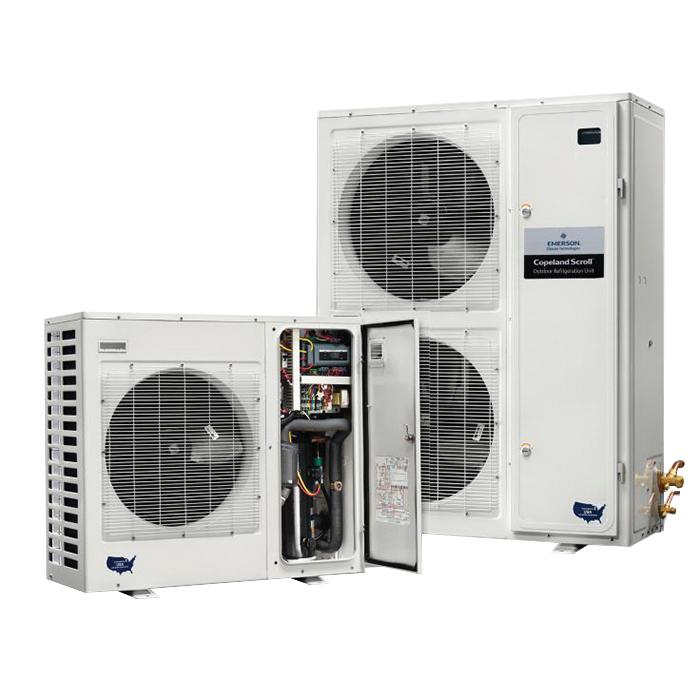

Copeland™ XFAM-045Z-TFC-081

Description

Copeland™ Outdoor Welded Condensing Unit, Series: XF Series, Model: XFAM-045Z-TFC, 36000 Btu/hr, 208 to 230 V, 29.98 A, 4 hp HP Rating, 60 Hz, 3 ph, R-134A, R-22, R-404A, R-407A, R-407C, R-507A, 1/2 in Liquid Line, 7/8 in Suction Line, Sweat, 50 A Fuse, 5 deg F, 45 deg F, Steel, 48.9 in H x 40.5 in W x 16.7 in D

Features

• Multiple refrigerant
• General three lead single voltage, six lead part winding (575 V), nine lead dual voltage compressor motor
• Internal inherent protection, one protector use with contactor
• Bill of material include receiver with valve, receiver heater/insulation, suction valve, liquid valve, pressure controls (adjustable low, fixed high), defrost control, filter drier, moisture indicator/sight glass, crankcase heater, variable speed condenser fan, demand cooling low temperature, enhanced vapor injection (EVI), medium/extended medium temperature, suction line and liquid injection, two way communication, CoreSense™ diagnostics/protection
• 40 A defrost relay rating
• Reliability, high-energy efficiency
• Low sound and vibration level
• Advanced diagnostics and protection features faster troubleshooting, warranty reduction
• Factory installed EK filter drier and HMI moisture indicator fewer the leaks, reduced callbacks, lower installation costs, increased equipment reliability
• Slim profile design and lightweight
• Copeland™ scroll compressors on all model
