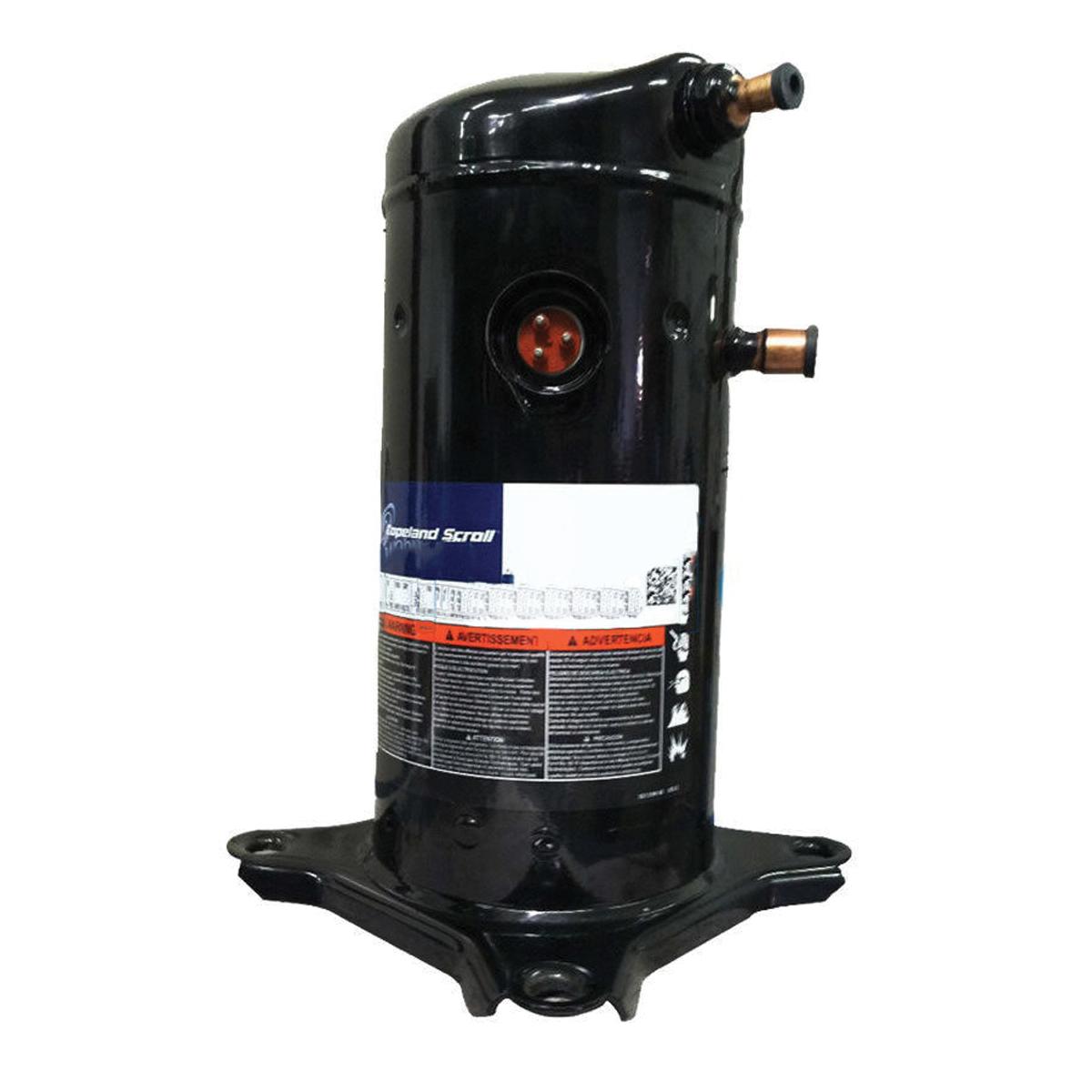

Copeland™ ZB58KCE-TF5-950
Copeland™ ZB ZB58KCE-TF5-950 Scroll Compressor, 200 - 230 VAC, 8380 W, 8 hp
Brand: Copeland™
Item No: ZB58KCE-TF5-950
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZB, 58000 Btu/hr BTU, 1-1/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 1215 - 2060 lb/hr, 15.711 cu-ft/min, 200 - 230 VAC, 25.8 A, 8380 W, 8 hp, R-22, R-404A, R-410A, R-407A, R-407C, R-407F, HFC Refrigerant, 3500 rev/min Speed, 82 - 87 dBA, 6.8 - 8.8 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 20-45 deg F Evaporator, 120-130 deg F Condensing, Liquid, 65 deg F Return Gas, 10.38 in L x 11.19 in W x 18.8 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V)
- Internal inherent protection
- Compressor family Series
- Model variation
- 85 oz initial oil charge, 81 oz oil recharge
- 248 cu-in internal free volume
- 7-1/2 in L x 7-1/2 in W x 19.57 in H mounting
- 7.76 cu-in/rev displacement
- 30.7 A-rated load, 195 A locked rotor, 43 A minimum circuit, 35.4 A maximum operating
- Bill of material-screw terminal, rotalock connection, sight glass and oil access fitting
Specifications
|
Amperage Rating |
25.8 A |
|
BTU Rating |
58000 Btu/hr |
|
CFM Rating |
15.711 cfm |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
10.38 in L x 11.19 in W x 18.8 in H |
|
Discharge Line Size |
7/8 in Stub |
|
EER Rating |
6.8 to 8.8 |
|
Flow Rate |
1215 to 2060 lb/hr |
|
Power Rating |
8380 W, 8 hp |
|
Refrigerant Type |
R-22, R-404A, R-410A, R-407A, R-407C, R-407F, HFC |
|
Series |
ZB |
|
Sound Level |
82 to 87 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-1/8 in Stub |
|
Temperature Rating |
20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, Liquid, 65 deg F Return Gas |
|
Voltage Rating |
200 to 230 VAC |
