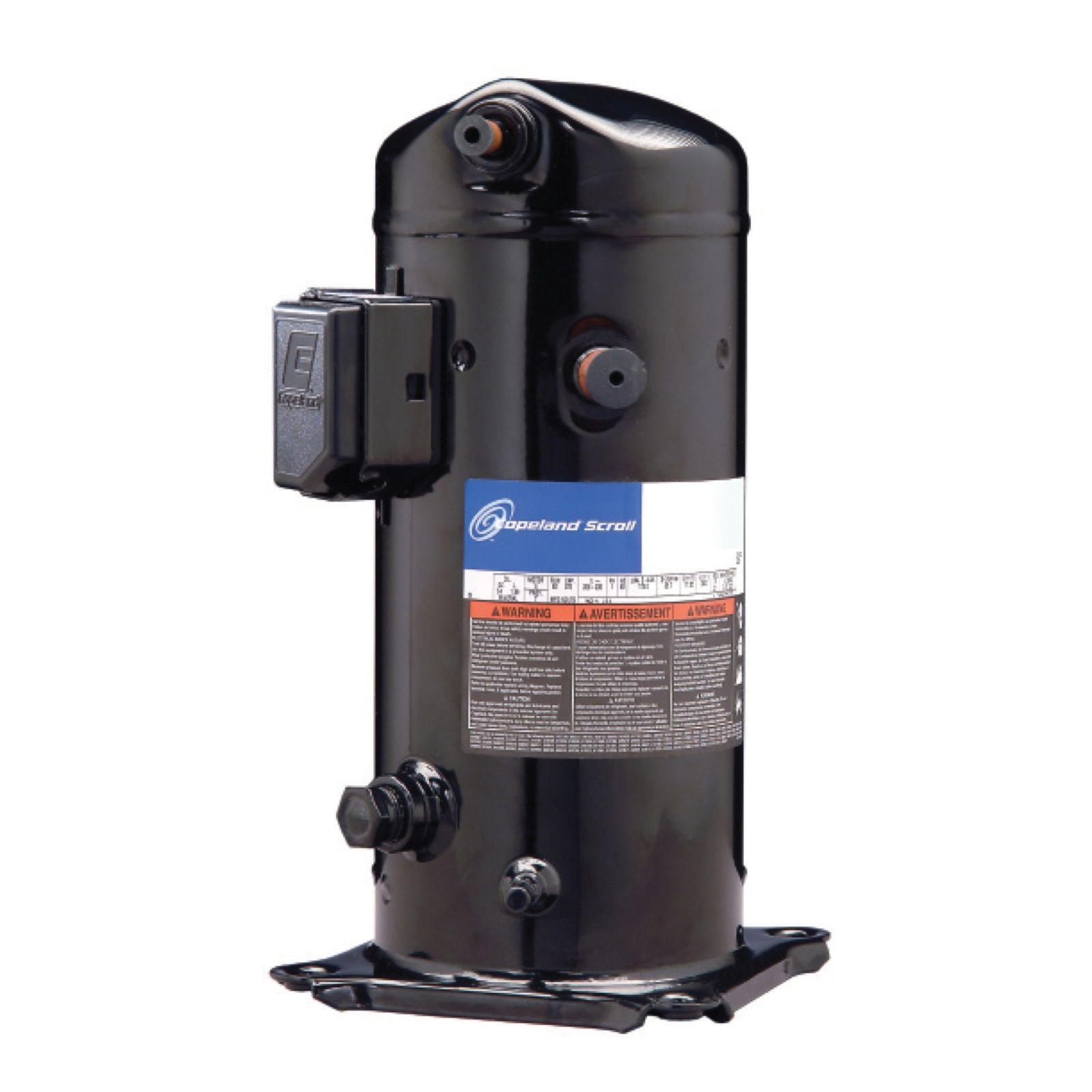

Copeland™ ZB66KCE-TFD-950

Description

Copeland™ Scroll Compressor, Series: ZB, 66000 Btu/hr BTU, 1-3/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 1360 - 2260 lb/hr, 17.664 cu-ft/min, 460 VAC, 14.25 A, 9350 W, 9 hp, R-22, R-404A, R-410A, R-407A, R-407C, R-407F, HFC Refrigerant, 3500 rev/min Speed, 80 - 85 dBA, 7 - 8.7 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 20-45 deg F Evaporator, 120-130 deg F Condensing, Liquid, 65 deg F Return Gas, 10.38 in L x 11.19 in W x 21-1/2 in H

Features

• General 3-lead single voltage, 6-lead part winding (575 V)
• Internal inherent protection
• Compressor family Series
• Model variation
• 110 oz initial oil charge, 106 oz oil recharge
• 809 cu-in internal free volume
• 7-1/2 in L x 7-1/2 in W x 21-3/4 in H mounting
• Internal overload protection
• 8.72 cu-in/rev displacement, 1059.85 cu-ft/hr displacement
• 17.5 A-rated load, 114 A locked rotor, 24.5 A minimum circuit, 17.5 A maximum operating
• Bill of material-screw terminal, rotalock connection, sight glass and oil access fitting
