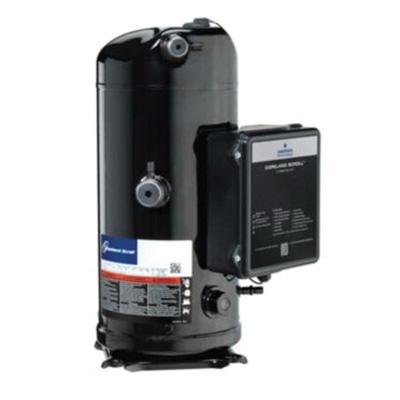

Copeland™ ZF18KVE-TFD-961

Description

Copeland™ Scroll Compressor, Series: ZF, 18000 Btu/hr BTU, 7/8 in ODF Suction Line, 1/2 in ODF Discharge Line, 233 - 349 lb/hr, 12.118 cu-ft/min, 460 VAC, 7.4 A, 6 hp, R-404A, R-134A, R-22, R-407A, R-407C, R-407F Refrigerant, POE-AK/DA, 3MA/SP32 Compressor Oil, -25 to-40 deg F Evaporator, 65 deg F Return Gas

Features

• General 3-lead single voltage, 6-lead part winding (575 V)
• Internal inherent protection
• Model variation
• 70% fewer moving parts
• Ability to start under any system load, without start components
• Compact, lightweight design
• No complex internal suction and discharge valves for quieter operation and higher reliability
• Axial and radial compliance allow the scroll members to separate in the presence of liquid refrigerant, thus providing protection against liquid damage
• Greater efficiency
• Operate at lower sound and vibration levels than traditional compressors
• Easy to service and maintain due to their compact size and lightweight, simple design
• Engineered for optimum performance with today's chlorine-free refrigerants
• 64 oz initial oil charge, 60 oz oil recharge
• 7-1/2 in L x 7-1/2 in W x 17.98 in H mounting
• 5.98 cu-in/rev displacement
• 9.3 A-rated load, 70 A locked rotor, 13.7 A maximum operating
• Bill of material-top cap well, flag terminal, rotalock connection, mounting parts, sight glass and oil access fitting
