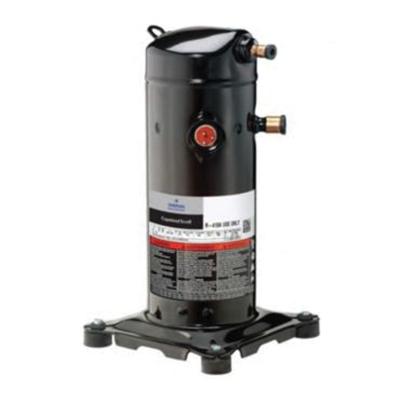

Copeland™ ZP42K5E-PFV-800
Copeland™ ZP ZP42K5E-PFV-800 Scroll Compressor, 4 ton, 200/208 - 230 VAC, 4070 W, 3-1/2 hp, R-410A Refrigerant
Brand: Copeland™
Item No: ZP42K5E-PFV-800
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZP, 42000 Btu/hr BTU, 4 ton, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 618 - 702 lb/hr, 4.92 cu-ft/min, 200/208 - 230 VAC, 18.35 A, 4070 W, 3-1/2 hp, R-410A Refrigerant, 3500 rev/min Speed, 68 - 73 dBA, 10.3 - 21.35 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45-50 deg F Evaporator, 100-130 deg F Condensing, 65-70 deg F Return Gas, 85-115 deg F Liquid, 9.56 in L x 9.56 in W x 16.94 in H
Features
- Capacitor run-permanent split capacitor motor type
- Internal inherent protection
- Compressor family Series
- Model variation
- 42 oz initial oil charge, 38 oz oil recharge
- 24.3 A-rated load, 117 A locked rotor, 34 A minimum circuit
- 183.3 cu-in internal free volume
- 2.43 cu-in/rev displacement
- Bill of material-compressor with molded plug wiring harness, mounting parts and installation instructions
Specifications
|
Amperage Rating |
18.35 A |
|
BTU Rating |
42000 Btu/hr |
|
CFM Rating |
4.92 cfm |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
9.56 in L x 9.56 in W x 16.94 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
10.3 to 21.35 |
|
Flow Rate |
618 to 702 lb/hr |
|
Power Rating |
4070 W, 3-1/2 hp |
|
Refrigerant Type |
R-410A |
|
Series |
ZP |
|
Sound Level |
68 to 73 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
7/8 in Stub |
|
Temperature Rating |
45 to 50 deg F Evaporator, 100 to 130 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid |
|
Tonnage |
4 ton |
|
Voltage Rating |
200/208 to 230 VAC |
