Copeland™ ZP49K5E-PFV-800

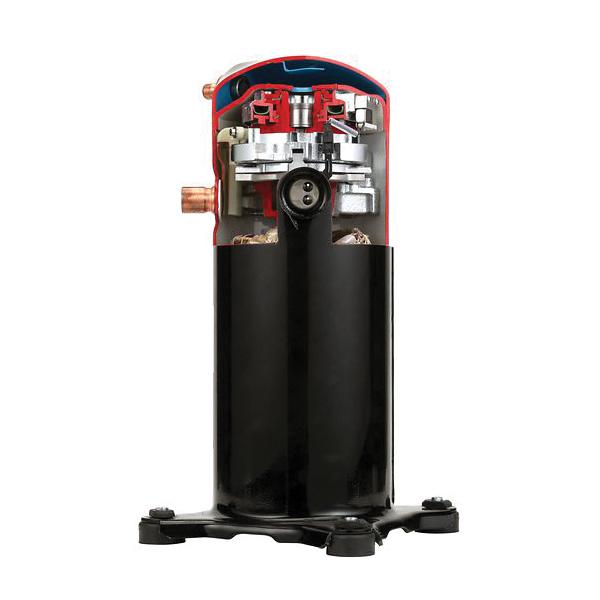

Copeland™ ZP ZP49K5E-PFV-800 Scroll Compressor, 4 ton, 208 - 230 VAC, 4690 W, 4 hp, R-410A, HFC Refrigerant
Brand: Copeland™
Item No: ZP49K5E-PFV-800
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZP, 49000 Btu/hr BTU, 4 ton, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 727 - 820 lb/hr, 5.734 cu-ft/min, 208 - 230 VAC, 21.2 A, 4690 W, 4 hp, R-410A, HFC Refrigerant, 3500 rev/min Speed, 68 - 73 dBA, 10.55 - 21.3 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45-50 deg F Evaporator, 100-130 deg F Condensing, 65-70 deg F Return Gas, 85-115 deg F Liquid, 9.56 in L x 9.56 in W x 16.94 in H
Features
- Capacitor run-permanent split capacitor motor type
- Internal inherent protection
- Compressor family Series
- Model variation
- 42 oz initial oil charge, 38 oz oil recharge
- 172.1 cu-in internal free volume
- 7-1/2 in L x 7-1/2 in W x 17.17 in H mounting
- 2.83 cu-in/rev displacement
- 27.9 A-rated load, 134 A locked rotor, 39 A minimum circuit, 34 A maximum operating
- Bill of material-42 in molded plug wiring harness, mounting parts and installation instructions
Specifications
|
Amperage Rating |
21.2 A |
|
BTU Rating |
49000 Btu/hr |
|
CFM Rating |
5.734 cfm |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
9.56 in L x 9.56 in W x 16.94 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
10.55 to 21.3 |
|
Flow Rate |
727 to 820 lb/hr |
|
Power Rating |
4690 W, 4 hp |
|
Refrigerant Type |
R-410A, HFC |
|
Series |
ZP |
|
Sound Level |
68 to 73 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
7/8 in Stub |
|
Temperature Rating |
45 to 50 deg F Evaporator, 100 to 130 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid |
|
Tonnage |
4 ton |
|
Voltage Rating |
208 to 230 VAC |
