Copeland™ ZP57K5E-PFV-800

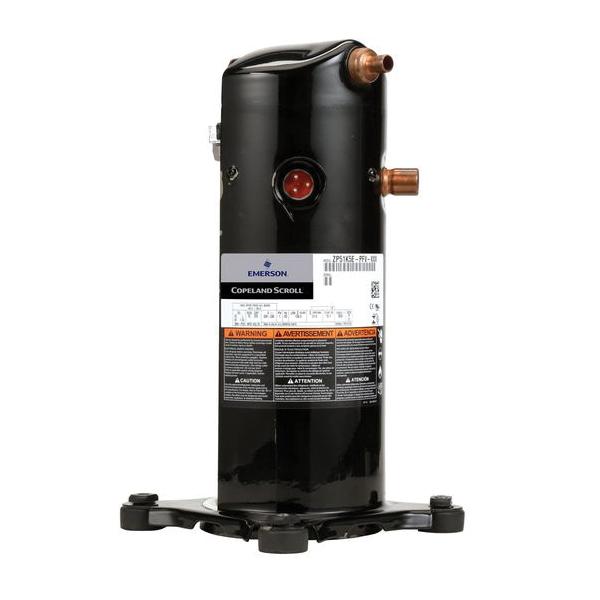

Copeland™ ZP57K5E-PFV-800 Scroll Compressor, 5 ton, 208/230 VAC, R-410A Refrigerant
Brand: Copeland™
Item No: ZP57K5E-PFV-800
Sign In for Availability
Description
Copeland™ Scroll™ ZPK5 compressor has been built upon the proven Copeland™ Scroll™ platform and over 30 years of scroll technology development.
Copeland™ Scroll Compressor, 57000 to 78000 Btu/hr, 5 ton, 0.875 in Dia x 11.4 in H Suction Line, 15.4 in H Discharge Line, 208/230 VAC, 44.2 A, 60 Hz, 1 ph, R-410A Refrigerant, Up to 10.4 EER Rating, 6-1/2 in Dia x 17 in H
Features
- 5th generation fixed speed compressor
Specifications
|
Amperage Rating |
44.2 A |
|
BTU Rating |
57000 to 78000 Btu/hr |
|
Dimensions |
6-1/2 in Dia x 17 in H |
|
Discharge Line Size |
15.4 in H |
|
EER Rating |
Up to 10.4 |
|
Frequency Rating |
60 Hz |
|
Phase |
1 ph |
|
Refrigerant Type |
R-410A |
|
Suction Line Size |
0.875 in Dia x 11.4 in H |
|
Tonnage |
5 ton |
|
Voltage Rating |
208/230 VAC |
Documentation
