Copeland™ ZPD154KCE-TED-950

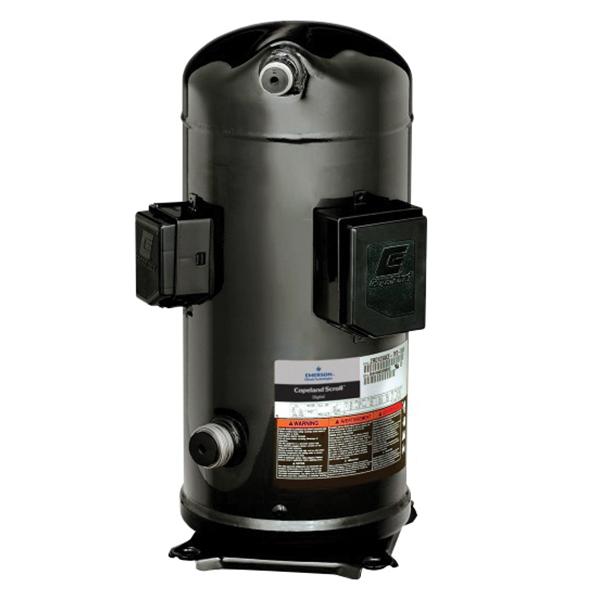

Copeland™ ZPD ZPD154KCE-TED-950 Scroll Compressor, 460 VAC, 14100 W, 13 hp, R-410A Refrigerant
Brand: Copeland™
Item No: ZPD154KCE-TED-950
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZPD, 154000 Btu/hr BTU, 1-3/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 1930 - 2290 lb/hr, 17.664 cu-ft/min, 460 VAC, 21.3 A, 14100 W, 13 hp, R-410A Refrigerant, 3500 rev/min Speed, 80 - 85 dBA, 11 - 11.1 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 35-45 deg F Evaporator, 120-130 deg F Condensing, 55-65 deg F Return Gas, 105-115 deg F Liquid, 12.94 in L x 11.73 in W x 22.21 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V)
- External enhanced
- Compressor family Series
- Model variation
- Digital modulation
- 114 oz initial oil charge, 110 oz oil recharge
- 7-1/2 in L x 7-1/2 in W x 23.02 in H mounting
- 8.72 cu-in/rev displacement, 1059.85 cu-ft/hr displacement
- 25.7 A-rated load, 150 A locked rotor, 36 A minimum circuit, 27 A maximum operating
- Bill of material-terminal cover, t-block, mounting parts
Specifications
|
Amperage Rating |
21.3 A |
|
BTU Rating |
154000 Btu/hr |
|
CFM Rating |
17.664 cfm |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
12.94 in L x 11.73 in W x 22.21 in H |
|
Discharge Line Size |
7/8 in Stub |
|
EER Rating |
11 to 11.1 |
|
Flow Rate |
1930 to 2290 lb/hr |
|
Power Rating |
14100 W, 13 hp |
|
Refrigerant Type |
R-410A |
|
Series |
ZPD |
|
Sound Level |
80 to 85 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-3/8 in Stub |
|
Temperature Rating |
35 to 45 deg F Evaporator, 120 to 130 deg F Condensing, 55 to 65 deg F Return Gas, 105 to 115 deg F Liquid |
|
Voltage Rating |
460 VAC |
