Copeland™ ZPS40K5E-TF5-800

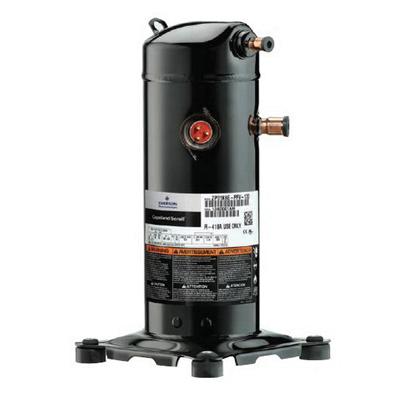

Copeland™ ZPS ZPS40K5E-TF5-800 Scroll Compressor, 3 ton, 208 - 230 VAC, 3-1/2 hp, R-410A Refrigerant
Brand: Copeland™
Item No: ZPS40K5E-TF5-800
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZPS, 40000 Btu/hr BTU, 3 ton, 7/8 in ODF Suction Line, 1/2 in ODF Discharge Line, 208 - 230 VAC, 3-1/2 hp, R-410A Refrigerant, POE-AK/DA, 3MA/SP32 Compressor Oil, 16-1/2 in H x 6-1/2 in Dia
Features
- General 3-lead single voltage, 6-lead part winding (575 V)
- Internal inherent protection
- Compressor family Series
- Ultra tech modulation
- Model variation
- (2) suction line and (3) discharge line location
- 11-5/8 in H suction line, 15-1/2 in H discharge
- 15.6 A-rated load, 21.9 A maximum continuous, 83.1 A locked rotor
- Bill of material-compressor with molded plug wiring harness, mounting parts and installation instructions
Specifications
|
BTU Rating |
40000 Btu/hr |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
16-1/2 in H x 6-1/2 in Dia |
|
Discharge Line Size |
1/2 in ODF |
|
Power Rating |
3-1/2 hp |
|
Refrigerant Type |
R-410A |
|
Series |
ZPS |
|
Suction Line Size |
7/8 in ODF |
|
Tonnage |
3 ton |
|
Voltage Rating |
208 - 230 VAC |
