Copeland™ ZPS51K5E-TF5-800

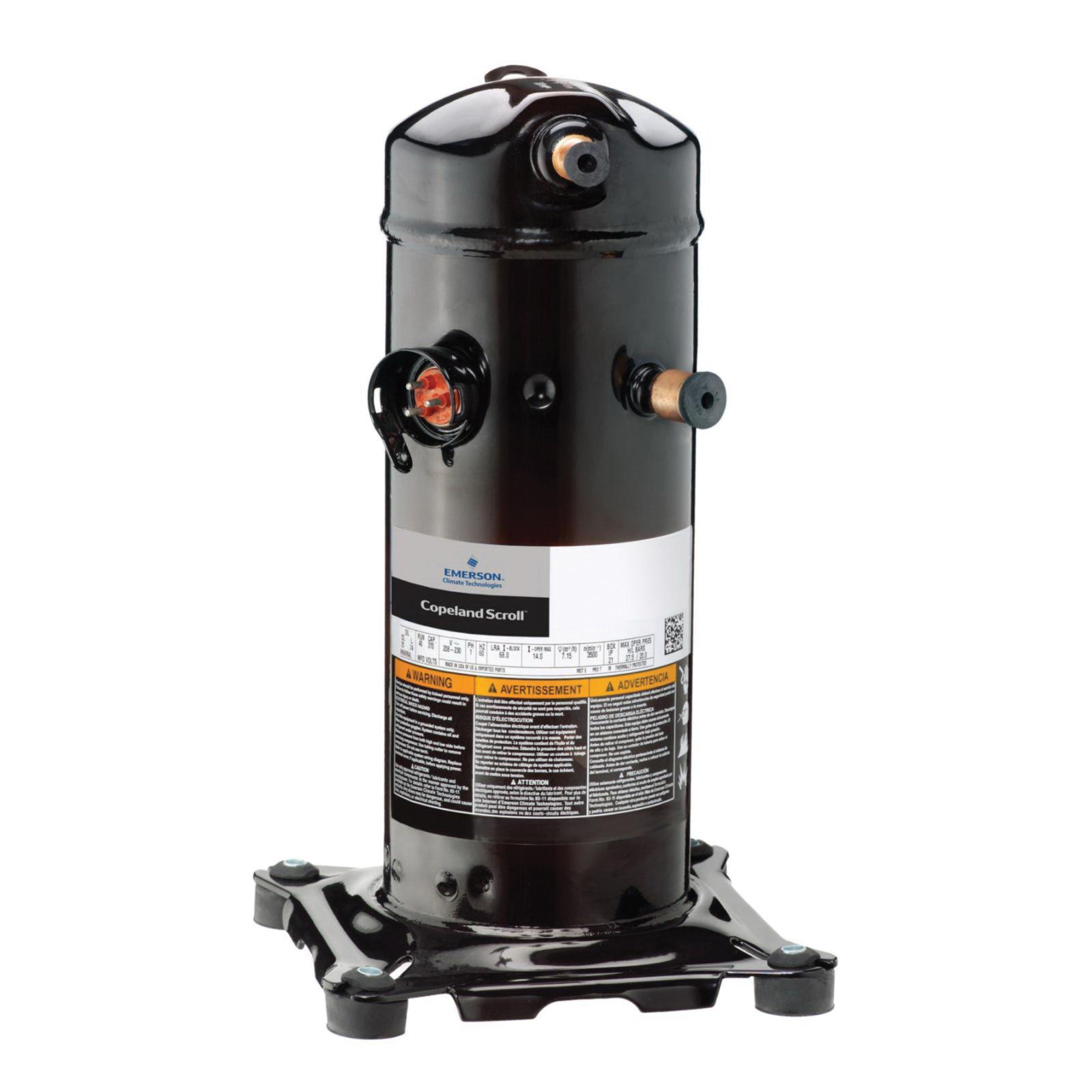

Copeland™ ZPS ZPS51K5E-TF5-800 Scroll Compressor, 4 ton, 200 - 230 VAC, 2640 W, 4 hp, R-410A Refrigerant
Brand: Copeland™
Item No: ZPS51K5E-TF5-800
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZPS, 51000 Btu/hr BTU, 4 ton, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 592 - 394 lb/hr, 5.995 cu-ft/min, 200 - 230 VAC, 8.35 A, 2640 W, 4 hp, R-410A Refrigerant, 3500 rev/min Speed, 72 - 77 dBA, 20.8 - 11.9 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 30-50 deg F Evaporator, 100 deg F Condensing, 50-70 deg F Return Gas, 85 deg F Liquid, 9.56 in L x 9.56 in W x 16.94 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V)
- Internal inherent protection
- Compressor family Series
- Ultra tech modulation
- Model variation
- 42 oz initial oil charge, 38 oz oil recharge
- 188.9 cu-in internal free volume
- 7-1/2 in L x 7-1/2 in W x 17.17 in H mounting
- 2.96 cu-in/rev displacement
- 18.4 A-rated load, 110 A locked rotor, 25.8 A minimum circuit, 22 A maximum operating
- Bill of material-42 in molded plug wiring harness, mounting parts and installation instructions
Specifications
|
Amperage Rating |
8.35 A |
|
BTU Rating |
51000 Btu/hr |
|
CFM Rating |
5.995 cfm |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
9.56 in L x 9.56 in W x 16.94 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
20.8 to 11.9 |
|
Flow Rate |
592 to 394 lb/hr |
|
Power Rating |
2640 W, 4 hp |
|
Refrigerant Type |
R-410A |
|
Series |
ZPS |
|
Sound Level |
72 to 77 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
7/8 in Stub |
|
Temperature Rating |
30 to 50 deg F Evaporator, 100 deg F Condensing, 50 to 70 deg F Return Gas, 85 deg F Liquid |
|
Tonnage |
4 ton |
|
Voltage Rating |
200 to 230 VAC |
