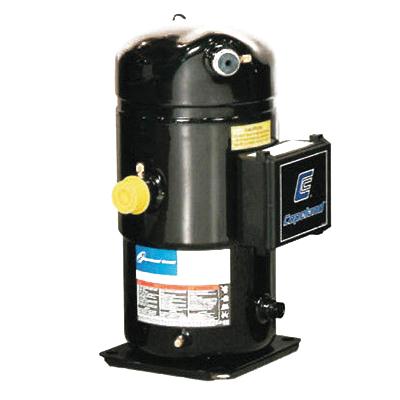

Copeland™ ZR11M3E-TWD-961
Copeland™ ZR ZR11M3E-TWD-961 Scroll Compressor, 9 ton, 460 VAC, 9600 W, 9 hp, R-22, R-407C, R-134A, HCFC Refrigerant
Brand: Copeland™
Item No: ZR11M3E-TWD-961
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZR, 110000 Btu/hr BTU, 9 ton, 1-3/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 1590 - 1650 lb/hr, 17.803 cu-ft/min, 460 VAC, 14.35 A, 9600 W, 9 hp, R-22, R-407C, R-134A, HCFC Refrigerant, 3500 rev/min Speed, 81 - 86 dBA, 11.3 - 18.9 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85-115 deg F Liquid, 12.57 in L x 14.06 in W x 21.17 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V)
- External electronic protection
- Compressor family Series
- Model variation
- 140 oz initial oil charge, 137 oz oil recharge
- 1037 cu-in internal free volume
- 8.65 in L x 8.65 in W x 21.4 in H mounting
- Internal line break overload for motor protection
- 8.79 cu-in/rev displacement, 1068.23 cu-ft/hr displacement
- 17 A-rated load, 125 A locked rotor, 23.8 A minimum circuit, 17.9 A maximum operating
- Bill of material-mounting parts, rota locks, 24 V module installed, 120 V module included, stub tube, rotalock to sweat adapters
Specifications
|
Amperage Rating |
14.35 A |
|
BTU Rating |
110000 Btu/hr |
|
CFM Rating |
17.803 cfm |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
12.57 in L x 14.06 in W x 21.17 in H |
|
Discharge Line Size |
7/8 in Stub |
|
EER Rating |
11.3 to 18.9 |
|
Flow Rate |
1590 to 1650 lb/hr |
|
Power Rating |
9600 W, 9 hp |
|
Refrigerant Type |
R-22, R-407C, R-134A, HCFC |
|
Series |
ZR |
|
Sound Level |
81 to 86 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
1-3/8 in Stub |
|
Temperature Rating |
45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85 to 115 deg F Liquid |
|
Tonnage |
9 ton |
|
Voltage Rating |
460 VAC |
