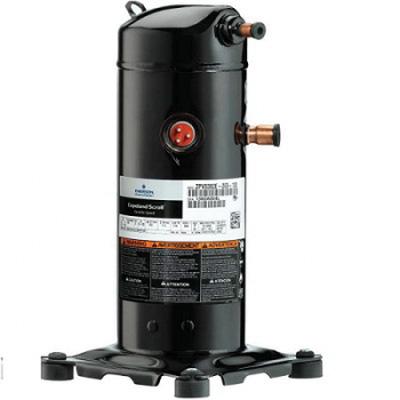

Copeland™ ZR190KCE-TED-965

Description

Copeland™ Scroll Compressor, Series: ZR, 190000 Btu/hr, 16 ton Tonnage, 1-3/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 253 to 256 gps Flow Rate, 460 VAC, 21.4 A, 11300 W, 15 hp, R-22, R-407C, R-134A Refrigerant, 3500 rpm, 83 to 88 dBA Sound Level, 3.28 to 5.25 COP EER Rating, POE-AK/DA, 3MA/SP32 Compressor Oil, 7.2 deg C Evaporator, 37.8 to 54.4 deg C Condensing, 18.3 deg C Return Gas, 29.4 to 46.1 deg C Liquid, 12.93 in L x 11.73 in W x 22.21 in H

Features

• General 3-lead single voltage, 6-lead part winding (575 V)
• External enhanced
• Compressor family Series
• Model variation
• 3371 mL initial oil charge, 3253 mL oil recharge
• 7-1/2 in L x 7-1/2 in W x 23.01 in H mounting
• 28.6 A-rated load, 173 A locked rotor, 40 A minimum circuit, 34 A maximum operating
• 249.16 cu-cm/rev displacement, 52.31 cu-m/hr displacement
• Bill of material-rotalock, screw on terminal block and mounting kit
