Copeland™ ZR57K3E-TF5-930

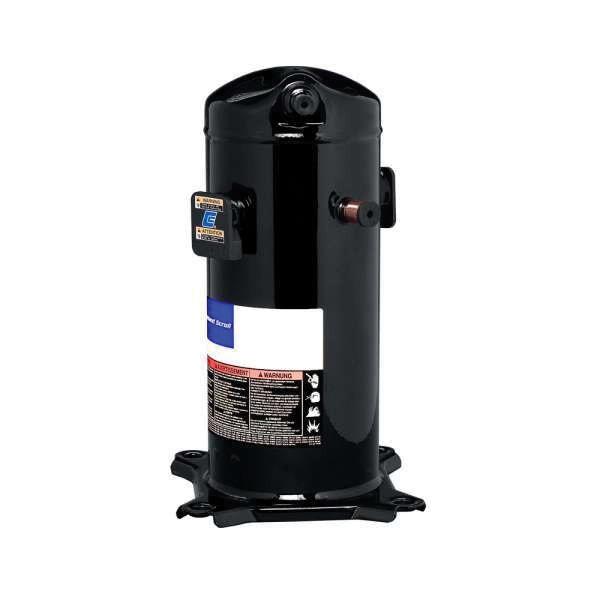

Copeland™ ZR ZR57K3E-TF5-930 Scroll Compressor, 4.75 ton, 200 - 230 VAC, 4980 W, 4-3/4 hp
Brand: Copeland™
Item No: ZR57K3E-TF5-930
Sign In for Availability
Description
Copeland™ Scroll Compressor, Series: ZR, 57000 Btu/hr BTU, 4.75 ton, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 860 - 880 lb/hr, 5.94 cu-ft/min, 200 - 230 VAC, 14.5 A, 4980 W, 4-3/4 hp, R-22, R-407C, R-134A, HCFC Refrigerant, 3500 rev/min Speed, 74 - 79 dBA, 11.7 - 20 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 130-100 deg F Condensing, 65 deg F Return Gas, 85-115 deg F Liquid, 9.69 in L x 9.69 in W x 17.24 in H
Features
- General 3-lead single voltage, 6-lead part winding (575 V)
- Internal inherent protection
- Compressor family Series
- Model variation
- 66 oz initial oil charge, 62 oz oil recharge
- 257 cu-in internal free volume
- 19.3 A-rated load, 27 A maximum continuous, 123 A locked rotor
- 7.5 in L x 7.5 in W x 17.99 in H mounting
- Quiet reliable operation, optimized scroll and seal design
- High efficiency motor
- Improved temperature protection
- Larger shaft bearing system
- New shutdown solution
- Redesigned shell
- Terminal block connection
- Bill of material-terminal cover, mounting parts, flag terminal kit
- 4.71 cu-in/rev displacement
Specifications
|
Amperage Rating |
14.5 A |
|
BTU Rating |
57000 Btu/hr |
|
CFM Rating |
5.94 cfm |
|
Compressor Oil |
POE-AK/DA, 3MA/SP32 |
|
Dimensions |
9.69 in L x 9.69 in W x 17.24 in H |
|
Discharge Line Size |
1/2 in Stub |
|
EER Rating |
11.7 to 20 |
|
Flow Rate |
860 to 880 lb/hr |
|
Power Rating |
4980 W, 4-3/4 hp |
|
Refrigerant Type |
R-22, R-407C, R-134A, HCFC |
|
Series |
ZR |
|
Sound Level |
74 to 79 dBA |
|
Speed Rating |
3500 rpm |
|
Suction Line Size |
7/8 in Stub |
|
Temperature Rating |
45 deg F Evaporator, 130 to 100 deg F Condensing, 65 deg F Return Gas, 85 to 115 deg F Liquid |
|
Tonnage |
4.75 ton |
|
Voltage Rating |
200 to 230 VAC |
