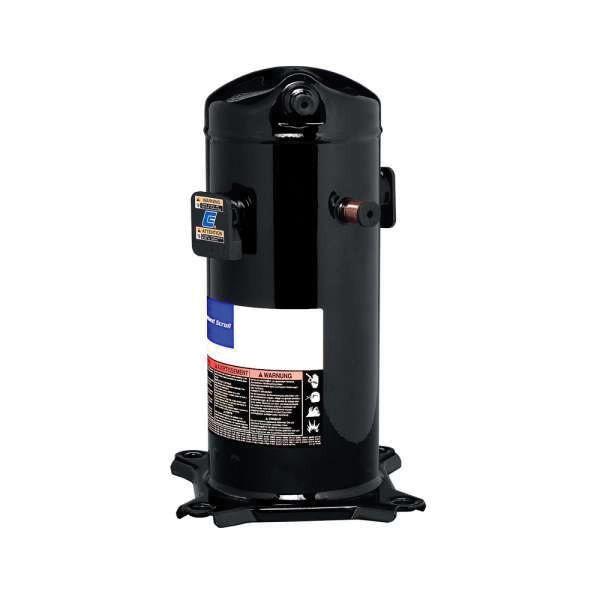

Copeland™ ZR61K3E-PFV-930

Description

Copeland™ Scroll Compressor, Series: ZR, 61000 Btu/hr BTU, 5 ton, 7/8 in Stub Suction Line, 1/2 in Stub Discharge Line, 859 - 885 lb/hr, 10.2 cu-ft/min, 208 - 230 VAC, 26.2 A, 5620 W, 5 hp, R-22, R-407C, R-134A, HCFC Refrigerant, 3500 rev/min Speed, 74 - 79 dBA, 10.55 - 19.2 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85-115 deg F Liquid, 9.69 in L x 9.69 in W x 17-3/4 in H

Features

• Capacitor run-permanent split capacitor motor type
• Internal inherent protection
• Compressor family Series
• Model variation
• Quiet reliable operation, optimized scroll and seal design
• High efficiency motor
• Improved temperature protection
• Larger shaft bearing system
• Internal pressure protection
• New shutdown solution
• Redesigned shell
• Terminal block connection
• 56 oz initial oil charge, 52 oz oil recharge
• 215 cu-in internal free volume
• 32.1 A-rated load, 45 A maximum continuous, 148 A locked rotor
• 7-1/2 in L x 7-1/2 in W x 18 in H mounting
• Bill of material-terminal cover, mounting parts, flag terminal kit
• 5.07 cu-in/rev displacement
