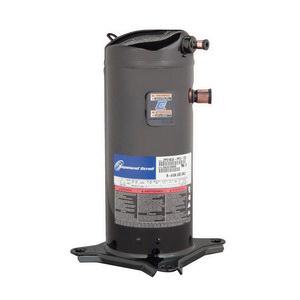

Copeland™ ZR90K3E-TWC-961

Description

Copeland™ Scroll Compressor, Series: ZR, 90000 Btu/hr BTU, 7.5 ton, 1-3/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 1300 - 1340 lb/hr, 14.824 cu-ft/min, 208 - 230 VAC, 25 A, 8000 W, 7-1/2 hp, R-22, R-407C, R-134A, HCFC Refrigerant, 3500 rev/min Speed, 80 - 85 dBA, 11.1 - 18.3 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85-115 deg F Liquid, 12.57 in L x 14.06 in W x 21.17 in H

Features

• General 3-lead single voltage, 6-lead part winding (575 V)
• External electronic protection
• Compressor family Series
• Model variation
• 140 oz initial oil charge, 137 oz oil recharge
• 1037 cu-in internal free volume
• 8.65 in L x 8.65 in W x 21.4 in H mounting
• Internal line break overload for motor protection
• 7.32 cu-in/rev displacement, 889.46 cu-ft/hr displacement
• 29.3 A-rated load, 189 A locked rotor, 41 A minimum circuit, 34 A maximum operating
• Bill of material-mounting parts, rota locks, 24 V module installed, 120 V module included, stub tube, rotalock to sweat adapters
