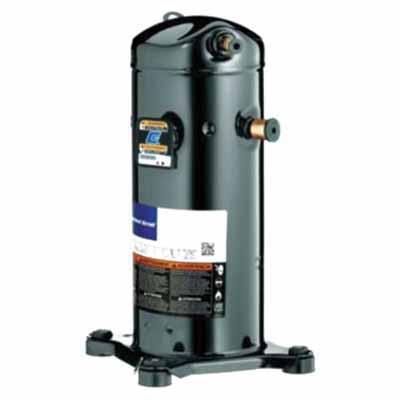

Copeland™ ZS11KAE-TF5-818

Description

Copeland™ Scroll Compressor, Series: ZS, 11000 Btu/hr BTU, 3/4 in Stub Suction Line, 1/2 in Stub Discharge Line, 238 - 390 lb/hr, 3.11 cu-ft/min, 200 - 230 VAC, 6.1 A, 1-1/2 hp, R-404A, R-134A, R-410A Refrigerant, POE-AK/DA, 3MA/SP32 Compressor Oil, 20-45 deg F Evaporator, 65 deg F Return Gas

Features

• General 3-lead single voltage, 6-lead part winding (575 V)
• Internal inherent protection-one-protector (line break) Use with contactor
• Model variation
• 70% fewer moving parts
• Ability to start under any system load, without start components
• Compact, lightweight design
• No complex internal suction and discharge valves for quieter operation and higher reliability
• Axial and radial compliance allow the scroll members to separate in the presence of liquid refrigerant, thus providing protection against liquid damage
• Operate at lower sound and vibration levels than traditional compressors
• Easy to service and maintain due to their compact size and lightweight, simple design
• Engineered for optimum performance with today's chlorine-free refrigerants
• 25 oz initial oil charge, 19 oz oil recharge
• 7-1/2 in L x 7-1/2 in W x 16 in H mounting
• 10.4 A-rated load, 58 A locked rotor, 14.05 A minimum circuit, 7.2 A maximum operating
• 1.54 cu-in/rev displacement
