Danfoss 061F8490

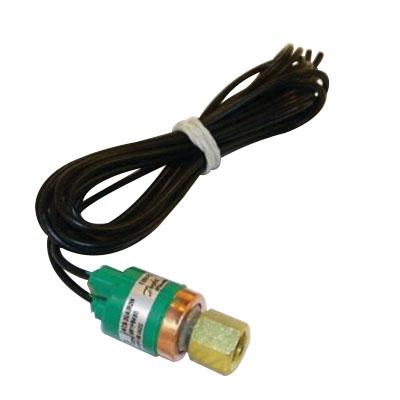

Danfoss 061F8490 ACB Cartridge Pressure Switch, 6 A, 250 V, 18 AWG Wire, 7/16-20 UNF Pressure Connection, SPST - NO
Brand: Danfoss
Item No: 061F8490
Sign In for Availability
Description
Danfoss ACB Cartridge Pressure Switch, 6 A, 250 V, 18 AWG Wire, 7/16-20 UNF Pressure Connection, SPST - NO, 11 lb/sq-in Cut-In, 8.5 lb/sq-in Cut-Out, 653 lb/sq-in Working Pressure, +/-45 deg Vertical Mounting, IP65 Enclosure, -20 to 185 deg F
Features
- Regular hot-melt housing
- 1.5 m length black cable
- Industrial pack
- Wide range
- Fixed pressure setpoints
- Stripped ends or customer specific electrical plug
- Open or waterproof version
Specifications
|
Amperage Rating |
6 A |
|
Connection Type |
18 AWG Wire, 7/16-20 UNF Pressure |
|
Contact Configuration |
SPST - NO |
|
Enclosure Type |
IP65 |
|
Mounting Type |
+/-45 deg Vertical |
|
Pressure Rating |
11 lb/sq-in Cut-In, 8.5 lb/sq-in Cut-Out, 653 lb/sq-in Working |
|
Temperature Rating |
-20 to 185 deg F |
|
Voltage Rating |
250 V |
