DiversiTech® 66756

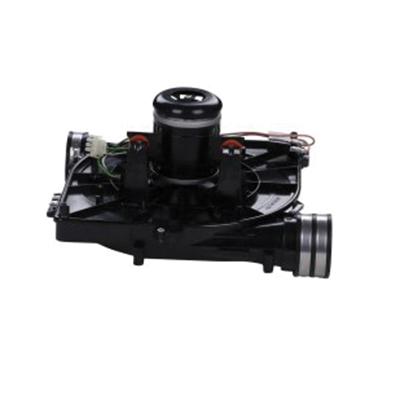

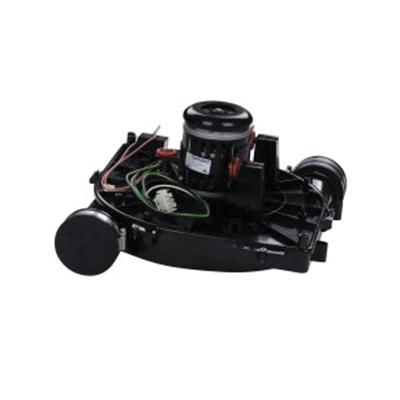

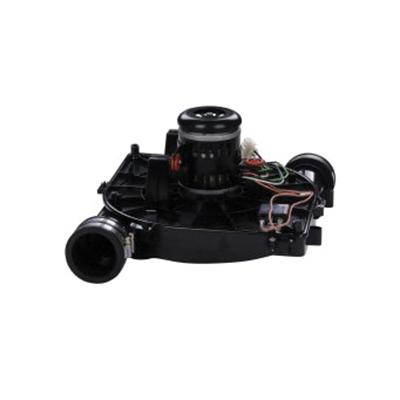

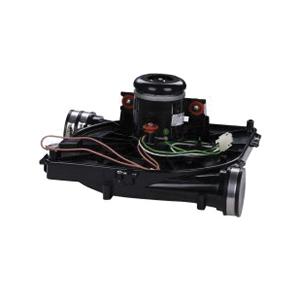

DiversiTech® 66756 Ducted Draft Inducer, 115 V, 0.85 A, 1/12 hp, 3300 rpm Speed
Brand: DiversiTech®
Item No: 66756
Sign In for Availability
Description
The Packard 66756, 58 W draft inducer replaces carrier is a PSC draft inducer assembly designed to replace original Carrier model 320725756 Packard branded draft inducers performance specifications are based on the OEM models they are designed to replace. DiversiTech encourages the use of cross reference information to choose the right draft inducer for your application.
DiversiTech® Ducted Draft Inducer, 0.85 A, 115 V, 60 Hz, 1 ph, 58 W Power, 1/12 hp, Inlet Size: 1-3/4 in, 3300 rpm Speed, CWSE Rotation, Ball, 1 Speed, Open Enclosure, NEMA Frame 3.3
Features
- 58 W, PSC motor
- Easy Installation
Specifications
|
Additional Information |
NEMA Frame 3.3 |
|
Amperage Rating |
0.85 A |
|
Bearing Type |
Ball |
|
Enclosure Type |
Open |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/12 hp |
|
Inlet Size |
1-3/4 in |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
58 W |
|
Rotation Type |
CWSE |
|
Speed Rating |
3300 rpm |
|
Voltage Rating |
115 V |
