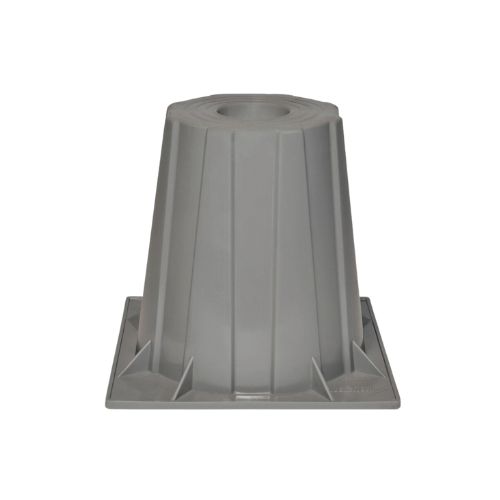

DiversiTech® HPR-6

Description

Sturdy and stable, DiversiTech® heat pump riser provides the desired elevation for condensers, heat pumps and air handlers. The one-piece, heavy-duty plastic unit is manufactured in three heights. Butyl mastic on the top and bottom guarantees no slipping and reduced vibration and noise. Available in one or two-piece risers. Four risers can handle up to 2000 lb uniform load.

DiversiTech® Riser, 6 in Connection, Polypropylene, Gray, 6 in L x 6-1/2 in W x 6-1/2 in H, Domestic/Import: Domestic

Features

• High-pressure injection molded polypropylene - medium gray colors, butyl mastic on the top and bottom guarantees no slipping
• All sizes of heat pump risers can handle a uniform load of 2000 lb with no failure when installed under the unit in an array of at least four heat pump risers
• All sizes of heat pump risers can handle a point load, applied to one square in area in the center of the footpad recess on the top of the HPR, of less than 800 lb with no failure
• High-pressure injection molded polypropylene - medium gray or black color, butyl mastic on the top and bottom guarantees no slipping
• Simply peel the release liner from the mastic before placing the heat pump riser and equipment
