Dwyer® 460

Description

Direct reading velocity and static pressure scales both low and high ranges show supply and return grille velocities, furnace draft, pressure drop across filters, etc. The 460 gives consistent, accurate results with no tedious calibration. Rugged plastic for rough daily use. Dual velocity ranges read 260 - 1200 and 1000 - 4000 FPM, pressure ranges from 0.005 - 0.09 and 0.05 - 1.0 in WC.

Dwyer® Air Meter/Draft Gauge, +/-0.05 to 1 in-WC Measuring, 260 to 1200 fpm, 1000 to 4000 fpm Velocity Rating, Plastic, 6 in H x 1-11/16 in W

Features

• High and low range velocity in one unit
• Simple and quick operation with highly accurate results
• Compact housing for easy portability

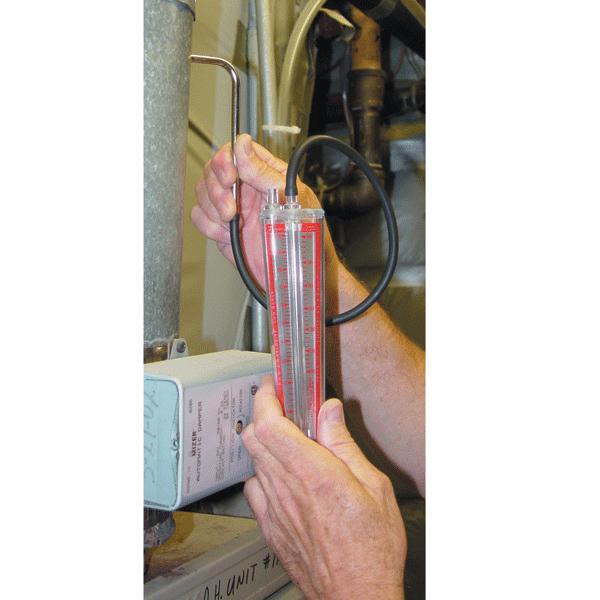

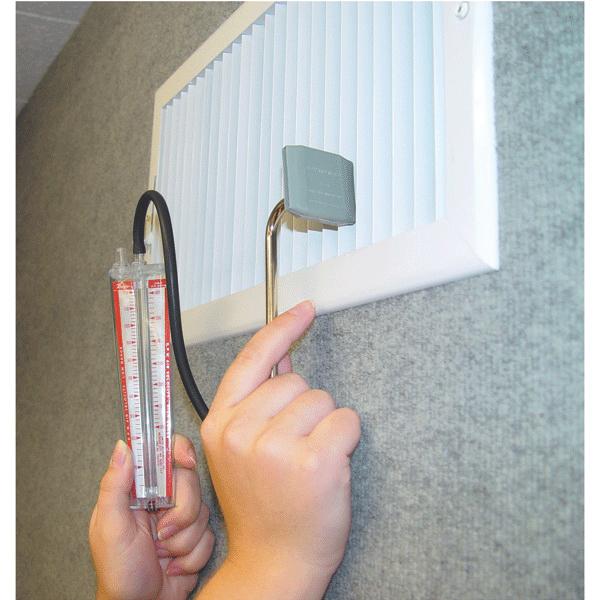

• Measuring grille velocities, furnace draft and pressure drop across filters

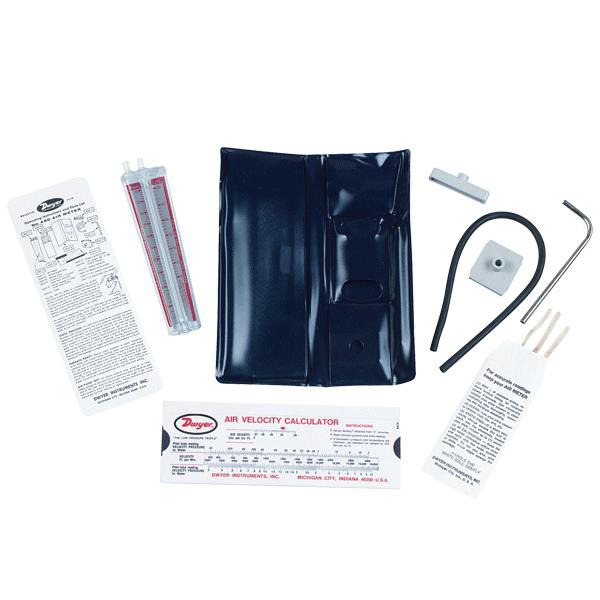

• Includes return and supply grille probes, angle connector, cleaning materials, instruction card, air velocity calculator, carrying case and extra plastic ball in plastic tube
