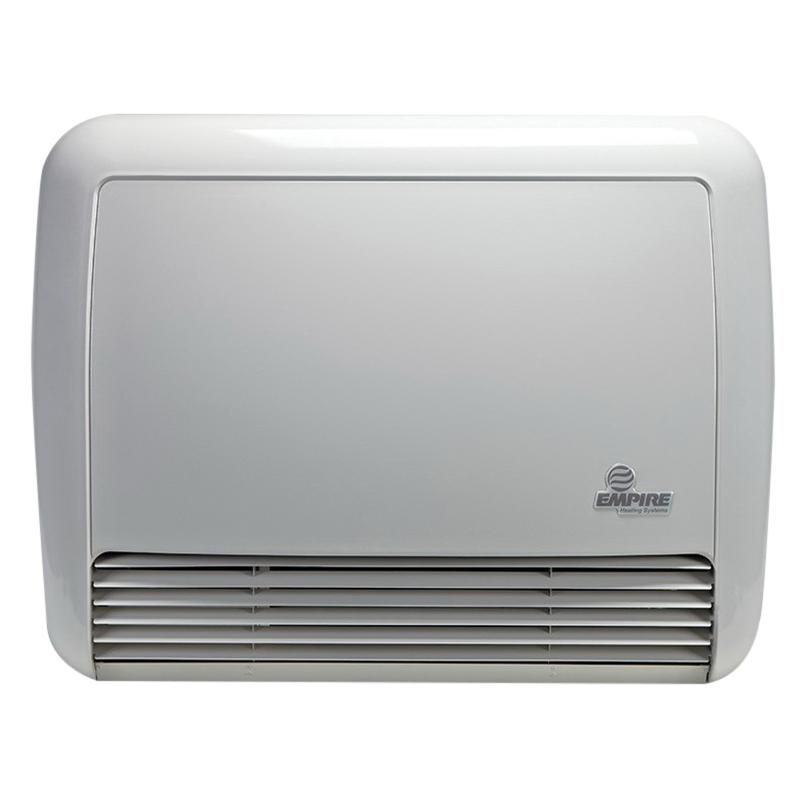

EMPIRE® PVS35N
EMPIRE® Ultra Saver 90-Plus PVS35N Gas Wall Furnace, 35000 Btu/hr Input BTU, 120 VAC, 420 cu-ft/min, 92% AFUE
Brand: EMPIRE®
Item No: PVS-35N
Sign In for Availability
Description
EMPIRE® Gas Wall Furnace, Series: Ultra Saver 90-Plus, 35000 Btu/hr Input BTU Rating, 120 VAC, 8 A Minimum Circuit, 15 A Maximum, 420 cu-ft/min, 92% AFUE, 920 W, 1 -Phase, 60 Hz, 1/2 in NPT Gas Connection, Natural Gas Fuel, 4 -Speed, 36-1/8 in W x 27-7/8 in H x 13 in D ,Area:725 - 1400sq-ft Cabinet Dimensions, Direct Vent Vent, Ducted or Ductless, Electronic Hot Surface Ignition
Features
- Clean, modern cabinet fits your decor
- Cool touch cabinet
- Vents with low-cost PVC or poly pipe
- Simple control system is easy to learn and use
- Works with most programmable thermostats
- Ideal in high-altitude applications
- Whisper quiet operations
- 1-1/2 or 2 in PVC or approved poly pipe venting diameter
- 8 in to 50 ft L maximum vent
Specifications
|
AFUE Rating |
92 % |
|
Amperage Rating |
8 A Minimum Circuit, 15 A Maximum |
|
CFM Rating |
420 cfm |
|
Cabinet Dimensions |
36-1/8 in W x 13 in D x 27-7/8 in H |
|
Connection Type |
1/2 in NPT Gas |
|
Frequency Rating |
60 Hz |
|
Fuel Type |
Natural Gas |
|
Ignition Type |
Electronic Hot Surface |
|
Input BTU Rating |
35000 Btu/hr |
|
Number of Speeds |
4 |
|
Phase |
1 ph |
|
Series |
Ultra Saver 90-Plus |
|
Vent, Ducted or Ductless |
Direct Vent |
|
Voltage Rating |
120 VAC |
|
Wattage |
920 W |
