fantech® 5BDD10BB-A

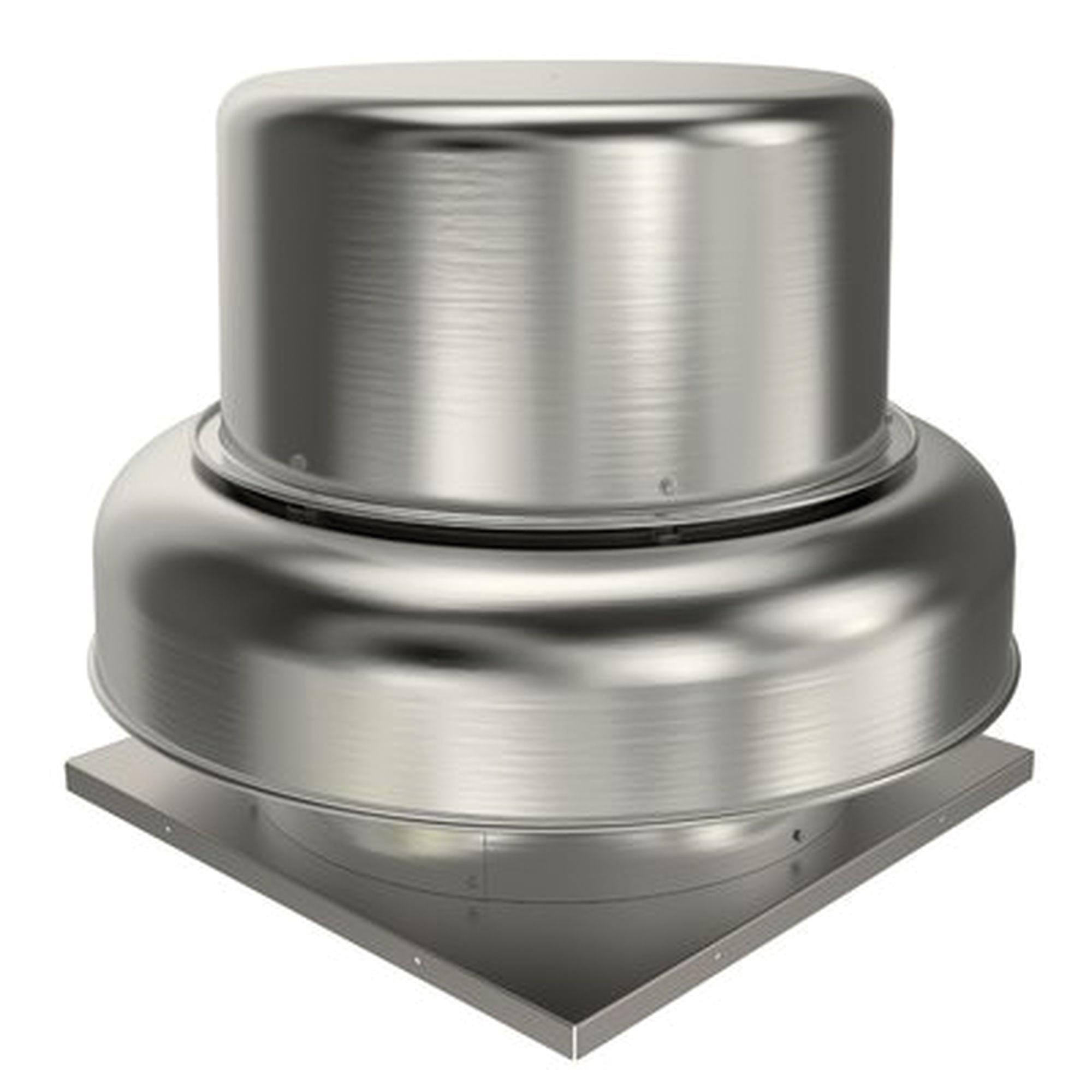

fantech® 5BDD Series 5BDD10BB-A Downblast Roof Fan, 25-3/4 in OAW, 22-7/8 in OAH, 120 to 230 V, 3.1 A, 50 Hz, Aluminum
Brand: fantech®
Item No: 5BDD10BB
Sign In for Availability
Description
Motor and wheel easily removable without removing fan from the edge. Permanently lubricated ball bearings (5BDD 10 to 5BDD 13) and regreasable shaft bearings (5BDU15 to 24). Welded corners eliminate water entry into ducts or buildings. Ball bearing motors and variable pitch drives will be packaged separately when ordered with fans.
fantech® Downblast Roof Fan, Series 5BDD Series, 25-3/4 in OAW, 22-7/8 in OAH, 1142 cfm Air, 120 to 230 V, 3.1 A, 50 Hz, Aluminum, 1/2 hp Motor, Belt Drive, 10-1/2 in Rotor Diameter, 252 W Power Rating, Ceiling Mount, 1733 rpm Speed, 77 deg C Temperature, 19 x 1-1/2 in Base
Features
- Air flow up to 18850 cfm
- Durable aluminum construction with steel clamps
- Inlet temperatures up to 75 deg C
Specifications
|
Additional Information |
1/2 hp Motor, Belt Drive, 10-1/2 in Rotor Diameter, 252 W Power Rating, Ceiling Mount, 1733 rpm Speed, 77 deg C Temperature, 19 x 1-1/2 in Base |
|
Air Flow Rate |
1142 cfm |
|
Material |
Aluminum |
|
Overall Height |
22-7/8 in |
|
Overall Width |
25-3/4 in |
|
Power Supply |
120 to 230 V, 3.1 A, 50 Hz |
|
Series |
5BDD Series |
