fantech® 5BDD13

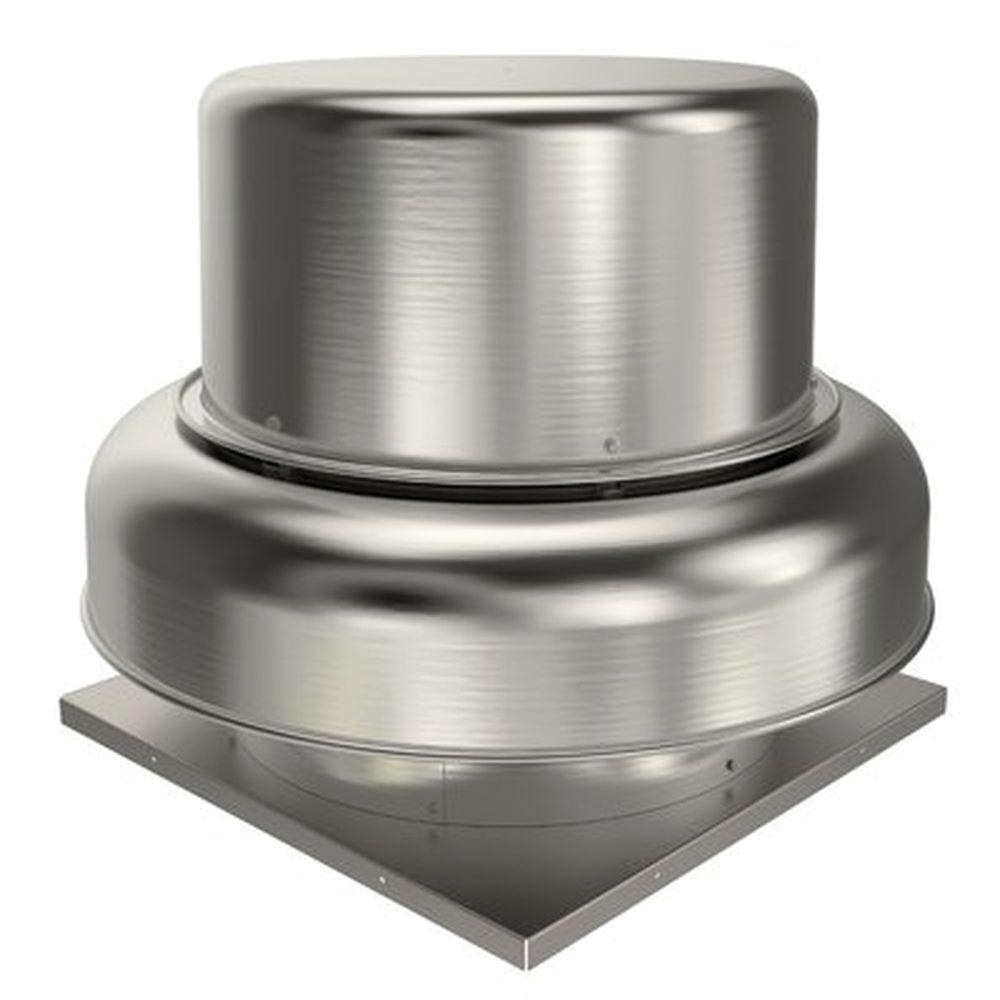

fantech® 5BDD Series 5BDD13 Downblast Roof Fan, 29-3/4 in OAW, 24-5/8 in OAH, Aluminum
Brand: fantech®
Item No: 5BDD13 SHELL ONLY
Sign In for Availability
Description
These models are for roof-mounting only. Motor and wheel are easily detachable without removing fan from curb. Permanently lubricated ball bearings (5BDD10 to 5BDD13) and regreasable pillow block bearings (5BDD15 to 5BDD24). Welded curb cap corners eliminate water entry into ducts or building. Ball bearing motors and variable pitch drives are packed separately when ordered with ventilators.
fantech® Downblast Roof Fan, Series 5BDD Series, 29-3/4 in OAW, 24-5/8 in OAH, 2100 cfm Air, Aluminum, 1/2 hp Motor, Belt Drive, 77 deg C Temperature, 22 x 1-1/2 in Base
Features
- Durable spun aluminum construction with steel support braces
- Inlet temperatures up to 170 deg F
- Backward inclined aluminum fan wheel
- Equipped with a built-in bird screen to protect discharge
- Externally cooled engine compartment
Specifications
|
Additional Information |
1/2 hp Motor, Belt Drive, 77 deg C Temperature, 22 x 1-1/2 in Base |
|
Air Flow Rate |
2100 cfm |
|
Material |
Aluminum |
|
Overall Height |
24-5/8 in |
|
Overall Width |
29-3/4 in |
|
Series |
5BDD Series |
