fantech® 46802

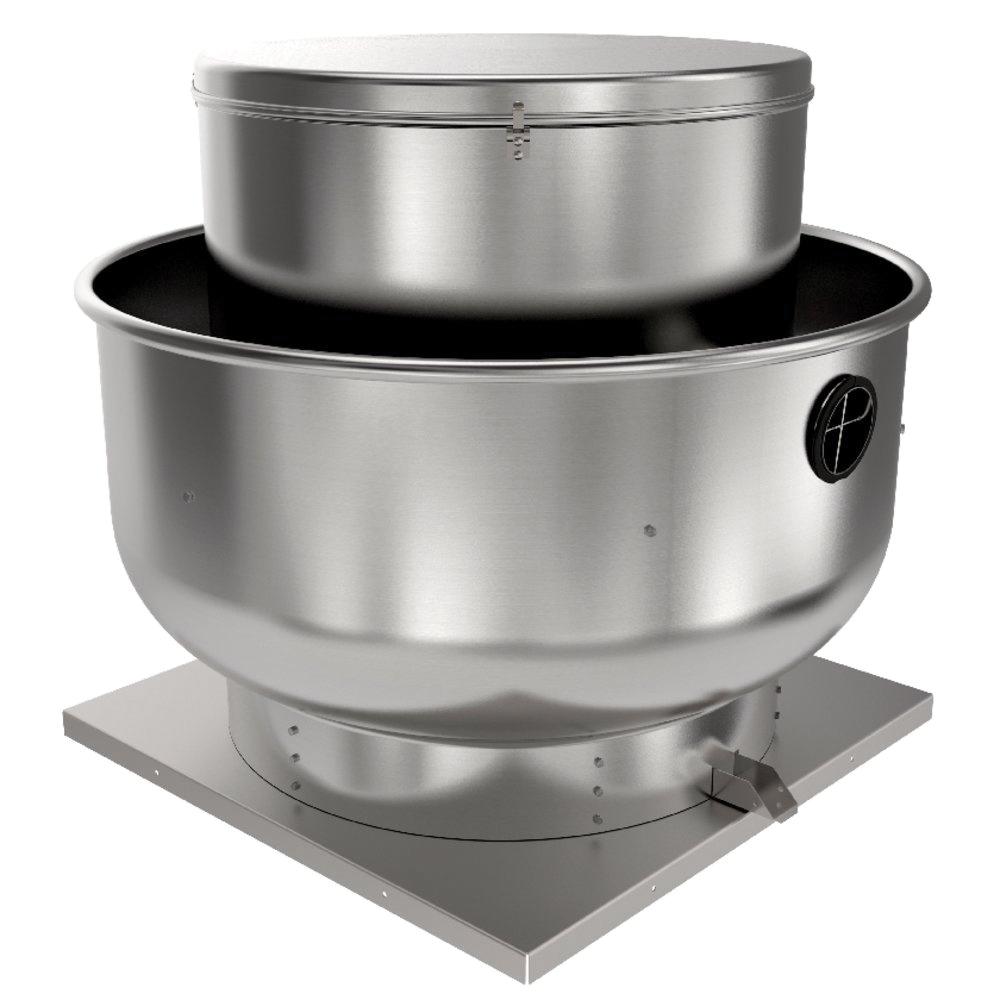

fantech® 5BDU 46802 Upblast Roof Exhaust Fan, 115/230 VAC, 3.2/3.1 A, Aluminum
Brand: fantech®
Item No: 5BDU12CB
Sign In for Availability
Description
Belt-drive upblast ventilators are designed for roof mounted exhaust of commercial and industrial buildings. There models are both for roof and wall application (except 5BDU30 and 5BDU36). Durable spun aluminum construction with steel support braces. Backward-inclined aluminum fan wheel. Motor and wheel are easily detachable without removing ventilator from curb. Permanently lubricated ball bearings (5BDU10 - 5BDU13) and regreasable pillow block bearings (5BDU15 - 5BDU24).
fantech® Upblast Roof Exhaust Fan, Series: 5BDU, 115/230 VAC, 3.2/3.1 A, 60 Hz, 336 W Input, 239 W Shaft, Aluminum, Wall Mount, 300 deg F, 26-1/2 in Width, 24-1/4 in Height, 1534 cfm, 1, 1565 rpm Speed Rating
Features
- Fully welded wind band
- Externally cooled motor compartment
- Motor size CB-A
Specifications
|
Amperage Rating |
3.2/3.1 A |
|
CFM Rating |
1534 cfm |
|
Frequency Rating |
60 Hz |
|
Height |
24-1/4 in |
|
Material |
Aluminum |
|
Mounting Type |
Wall |
|
Phase |
1 |
|
Power Rating |
336 W Input, 239 W Shaft |
|
Series |
5BDU |
|
Speed Rating |
1565 rpm |
|
Temperature Rating |
300 deg F |
|
Voltage Rating |
115/230 VAC |
|
Width |
26-1/2 in |
