fantech® 47386

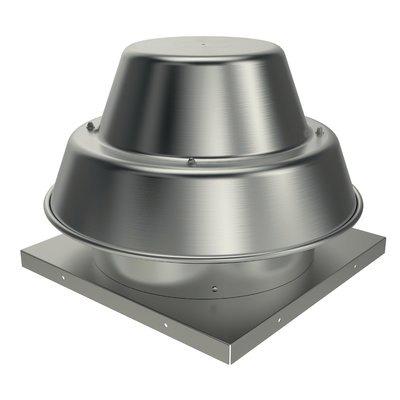

fantech® 5DDD 47386 Downblast Roof Fan, 115 VAC, 1.5 A, Aluminum
Brand: fantech®
Item No: 5DDD085A
Sign In for Availability
Description
Direct-drive downblast ventilators are designed for use where steady exhaust ventilation is needed under low to moderate static pressure conditions. Ventilators can be mounted on the roof or wall. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.
fantech® Downblast Roof Fan, Series: 5DDD, 115 VAC, 1.5 A, 60 Hz, 1/25 hp, 89.9 W Input, Aluminum, Roof/Wall Mount, Up to 170 deg F Inlet, 18-7/8 in Width, 14-3/4 in Height, 417 cfm, 1, 1661 rev/min Impeller Speed Rating
Features
- One-piece removable exhaust hood
- Backward inclined aluminum fan wheel
- Equipped with a built-in bird screen to protect discharge
- Externally cooled motor compartment
Specifications
|
Amperage Rating |
1.5 A |
|
CFM Rating |
417 cfm |
|
Frequency Rating |
60 Hz |
|
Height |
14-3/4 in |
|
Material |
Aluminum |
|
Mounting Type |
Roof/Wall |
|
Phase |
1 |
|
Power Rating |
1/25 hp, 89.9 W Input |
|
Series |
5DDD |
|
Speed Rating |
1661 rev/min Impeller |
|
Temperature Rating |
Up to 170 deg F Inlet |
|
Voltage Rating |
115 VAC |
|
Width |
18-7/8 in |
