fantech® 47335

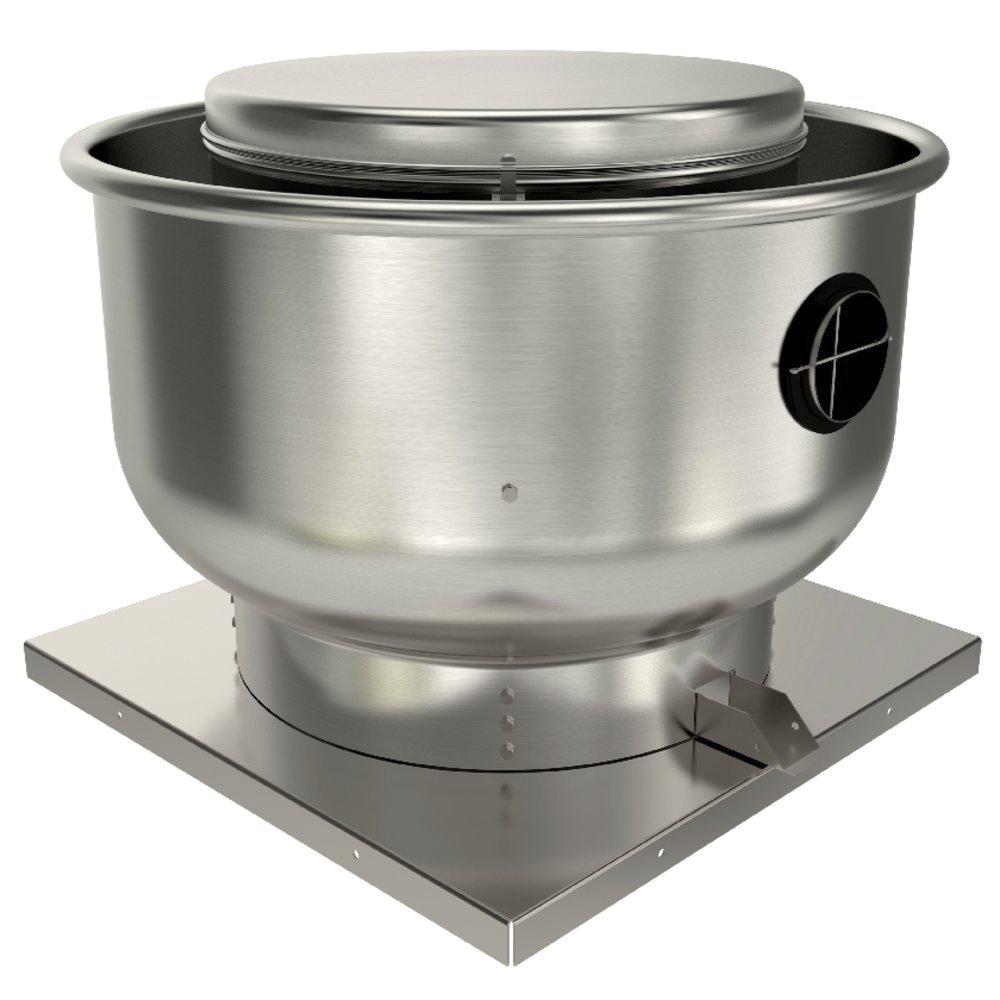

fantech® 5DDU 47335 Upblast Roof Fan, 115 VAC, 2.7 A, Aluminum
Brand: fantech®
Item No: 5DDU10AA
Sign In for Availability
Description
Direct-drive upblast ventilators are designed for continuous operation to exhaust foul air, smoke, fumes, odors and grease-laden vapors from range hoods and commercial cooking appliances. Ventilators are designed for installation in industrial, institutional and commercial kitchen applications. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.
fantech® Upblast Roof Fan, Series: 5DDU, 115 VAC, 2.7 A, 60 Hz, 1/6 hp, 186 W Input, Aluminum, Roof/Wall Mount, Up to 300 deg F Inlet, 23-7/8 in Width, 20-3/8 in Height, 1051 cfm, 1, 1725 rev/min Impeller Speed Rating
Features
- Backward inclined aluminum fan wheel
- Externally cooled motor compartment
- Fully welded wind band
Specifications
|
Amperage Rating |
2.7 A |
|
CFM Rating |
1051 cfm |
|
Frequency Rating |
60 Hz |
|
Height |
20-3/8 in |
|
Material |
Aluminum |
|
Mounting Type |
Roof/Wall |
|
Phase |
1 |
|
Power Rating |
1/6 hp, 186 W Input |
|
Series |
5DDU |
|
Speed Rating |
1725 rev/min Impeller |
|
Temperature Rating |
Up to 300 deg F Inlet |
|
Voltage Rating |
115 VAC |
|
Width |
23-7/8 in |
